MacDon FD75 - Converting from Field to Transport Position; Moving Front (Left) Wheels into Transport Position

214323 259 Revision A
1001741

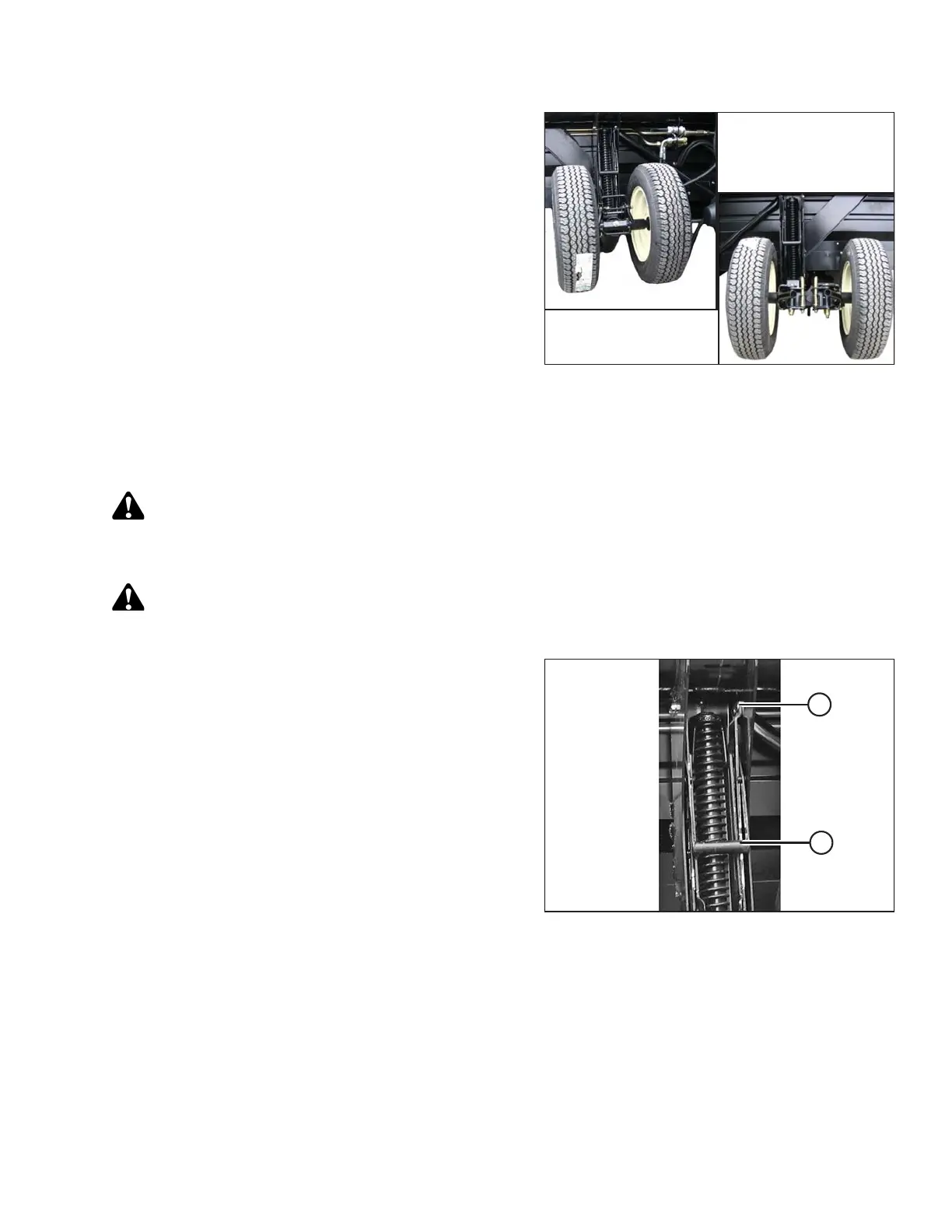

Figure 3.459: Field Position
13. Complete the conversion by ensuring the left side (A)
and right side (B) wheels are in the position shown.
3.13.4 Converting from Field to Transport Position
Moving Front (Left) Wheels into Transport Position
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under header for any reason.
CAUTION
Stand clear of wheels and release linkage carefully as wheels will drop once the mechanism is released.
1001226
A
B
Figure 3.460: Raising Linkage
1. Pull handle (B) upwards to release and raise linkage (A)
fully upwards into the vertical support.
2. Raise the header fully, stop the engine, and remove the
key from ignition. Engage the header safety props.
OPERATION
