5.10.6 Raising Polyethylene Door – Adapter Feed Deck
1018204
A
B
C

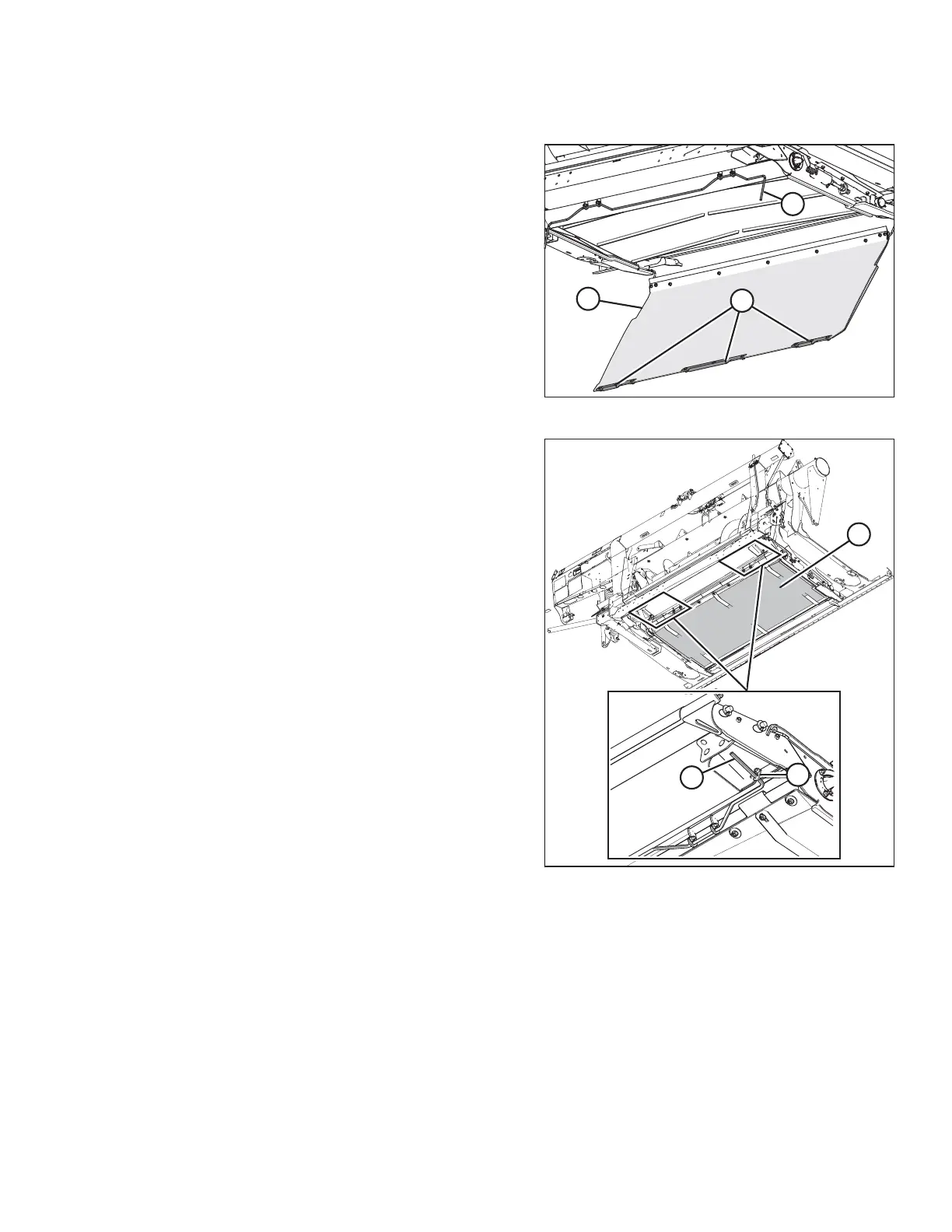

Figure 5.179: Feed Deck Polyethylene Door
1. Raise plastic pan (A).
2. Attach hooks (B) to lock handle (C).
IMPORTANT:
Ensure all three hooks are secured.
1018205
A
B
C
Figure 5.180: Feed Deck Polyethylene Door
3. Hold pan (C) and rotate handles (B) upward to
secure pan.
4. Rotate latches (A) to unlock handles (B).
