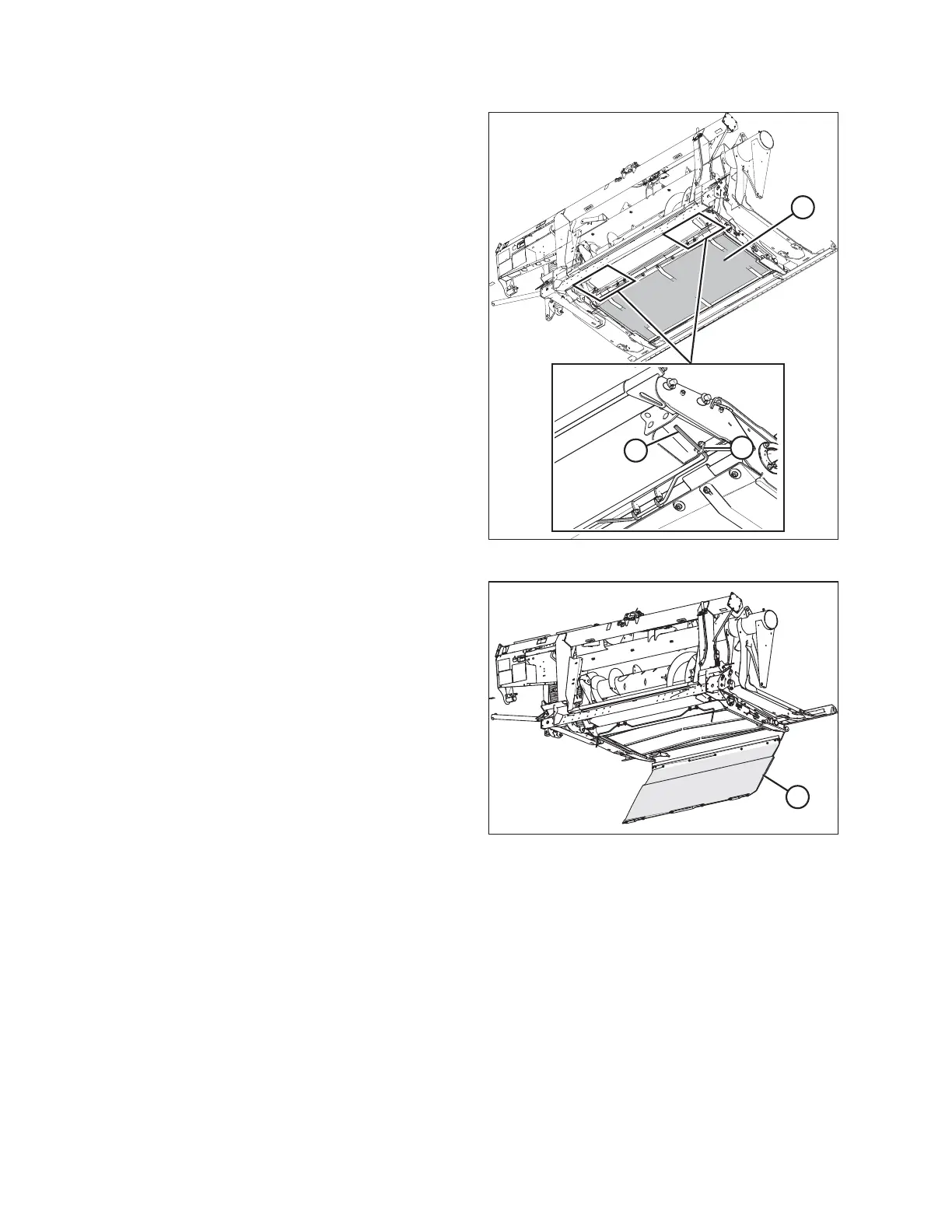

Figure 5.177: Feed Deck Polyethylene Door
3. Rotate latches (A) to unlock handles (B).
4. Hold pan (C) and rotate handles (B) downward to
release pan.
1018204
A
Figure 5.178: Feed Deck Polyethylene Door
5. Lower plastic pan (A) and check for debris that may
have fallen under adapter draper.
MAINTENANCE AND SERVICING
