4.5.1 Attaching Header to CLAAS Combine
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.

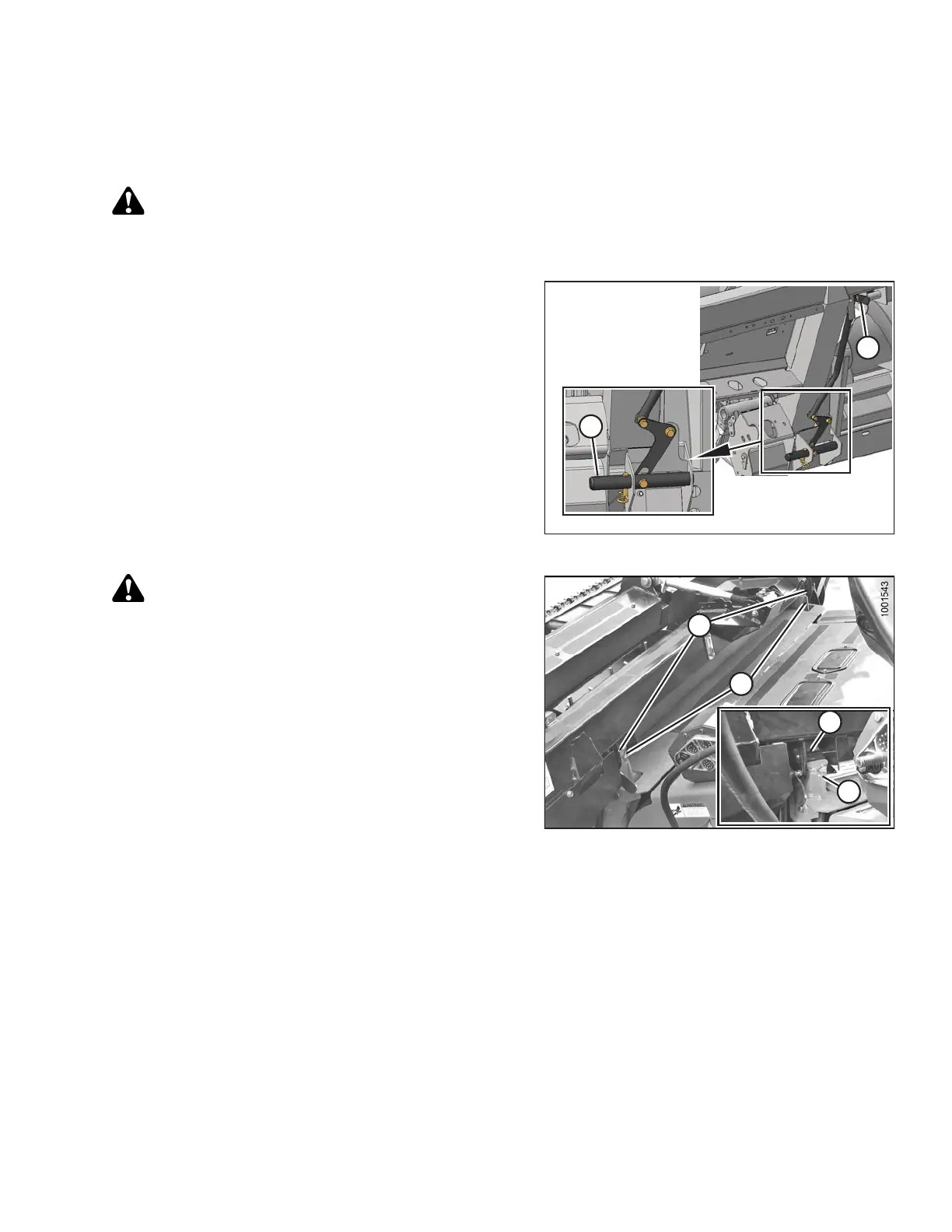

Figure 4.55: Pins Retracted
1. Move handle (A) on CA25 Combine Adapter into raised
position, and ensure pins (B) at bottom corners of
adapter are retracted.
Figure 4.56: Header on Combine
CAUTION
Never start or move the machine until you are sure all
bystanders have cleared the area.
2. Start engine and slowly drive combine up to header
until feeder house saddle (A) is directly under adapter
top cross member (B).
3. Raise feeder house slightly to lift header, ensuring
feeder saddle is properly engaged in adapter frame.
4. Stop engine and remove key from ignition.
