214323 294 Revision A

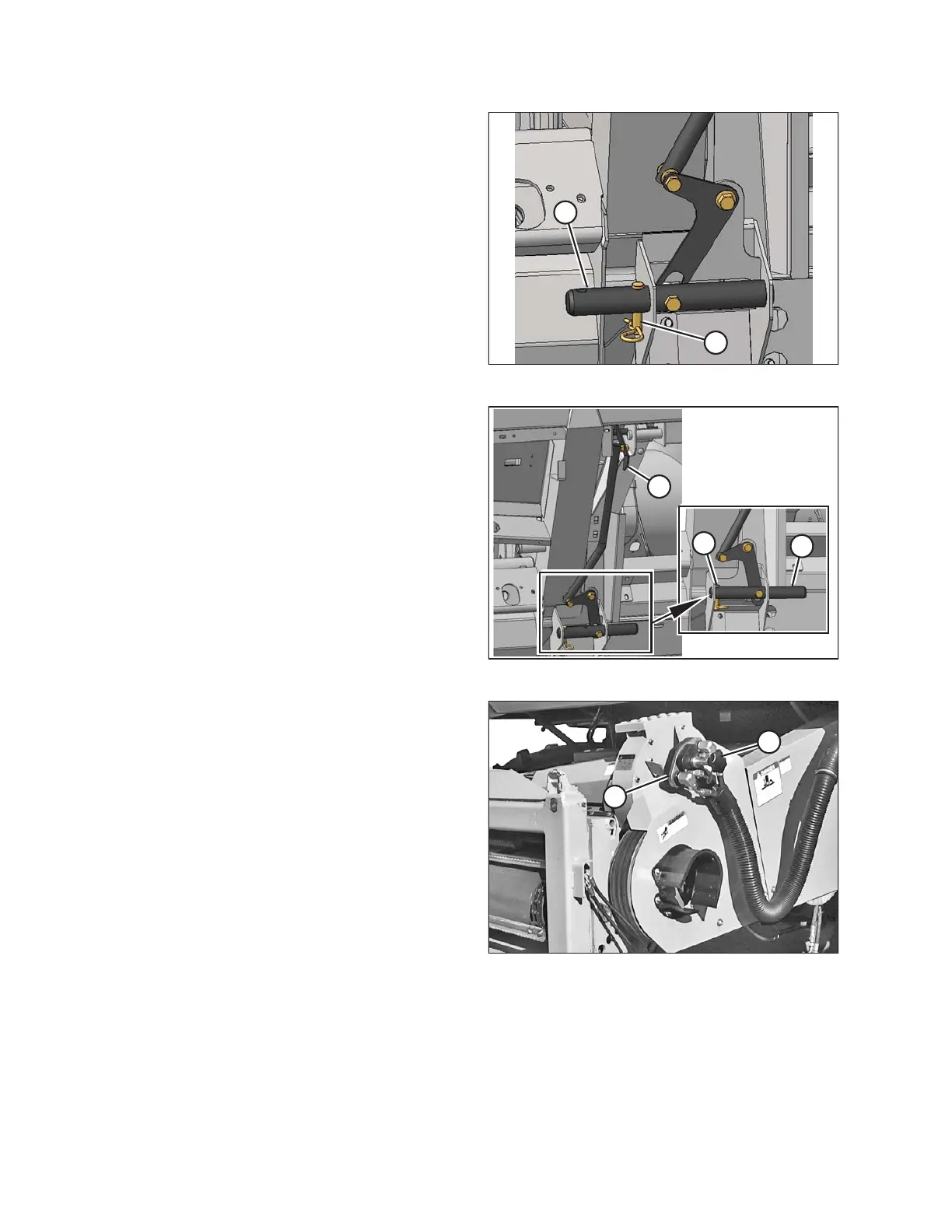

Figure 4.57: Adapter Pin
5. Remove locking pin (B) from adapter pin (A).
Figure 4.58: Engaging Pins
6. Lower handle (A) to engage pins (B) into feeder house.
Reinsert locking pin (C) and secure with the hairpin.
7. Stop engine and remove key from ignition.
Figure 4.59: Combine Coupler
8. Unscrew knob (A) on combine coupler (B) to release
coupler from combine receptacle and clean coupler.
HEADER ATTACHMENT/DETACHMENT
