214323 295 Revision A

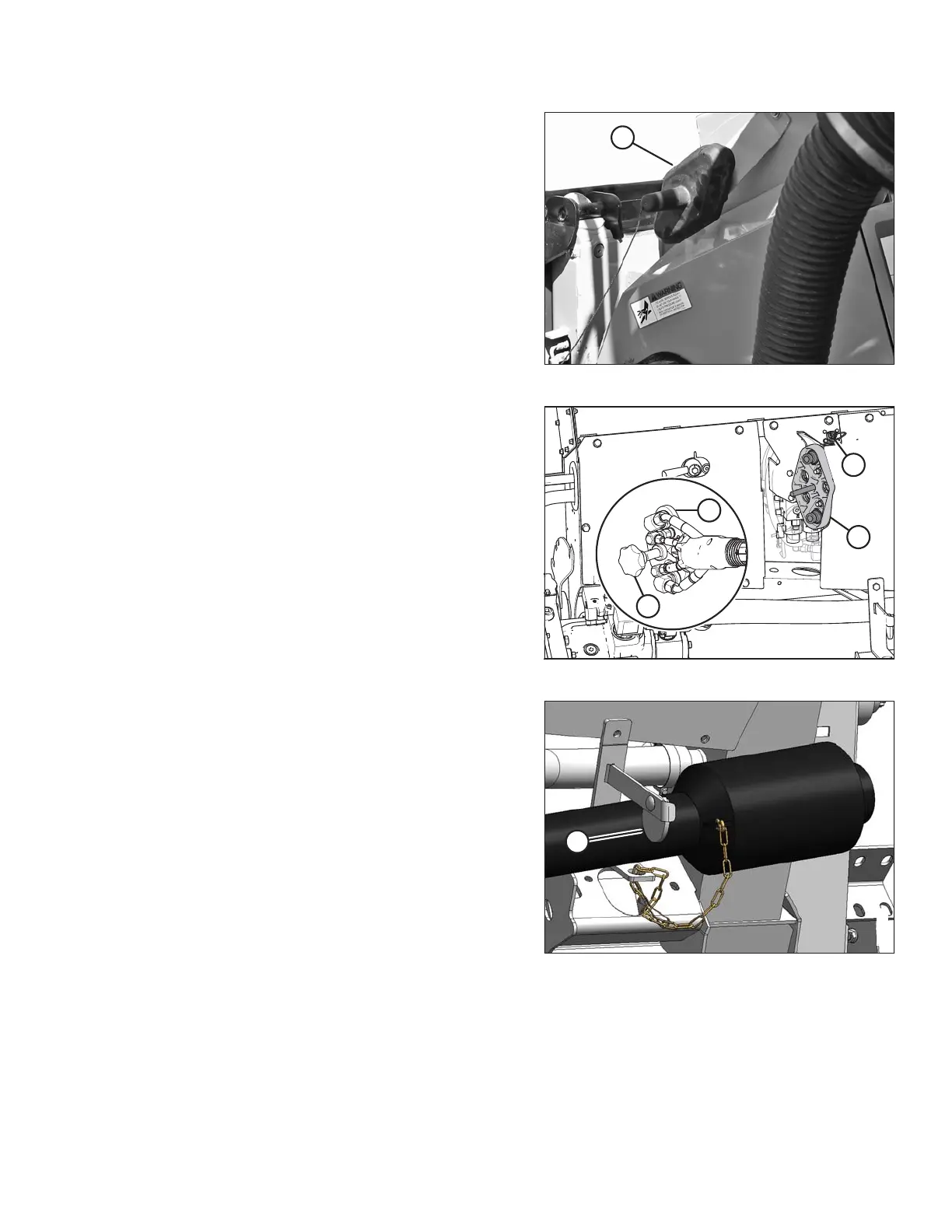

Figure 4.60: Receptacle Cover
9. Place CA25 receptacle cover (A) onto
combine receptacle.
Figure 4.61: Coupler
10. Clean mating surface of coupler (A) and position onto
CA25 receptacle (B).
11. Turn knob (C) to secure coupler to receptacle.
12. Connect combine harness to reel fore-aft/header tilt
selector receptacle (D).
Figure 4.62: Driveline
13. Rotate disc (A) on adapter driveline storage hook, and
remove driveline from hook.
