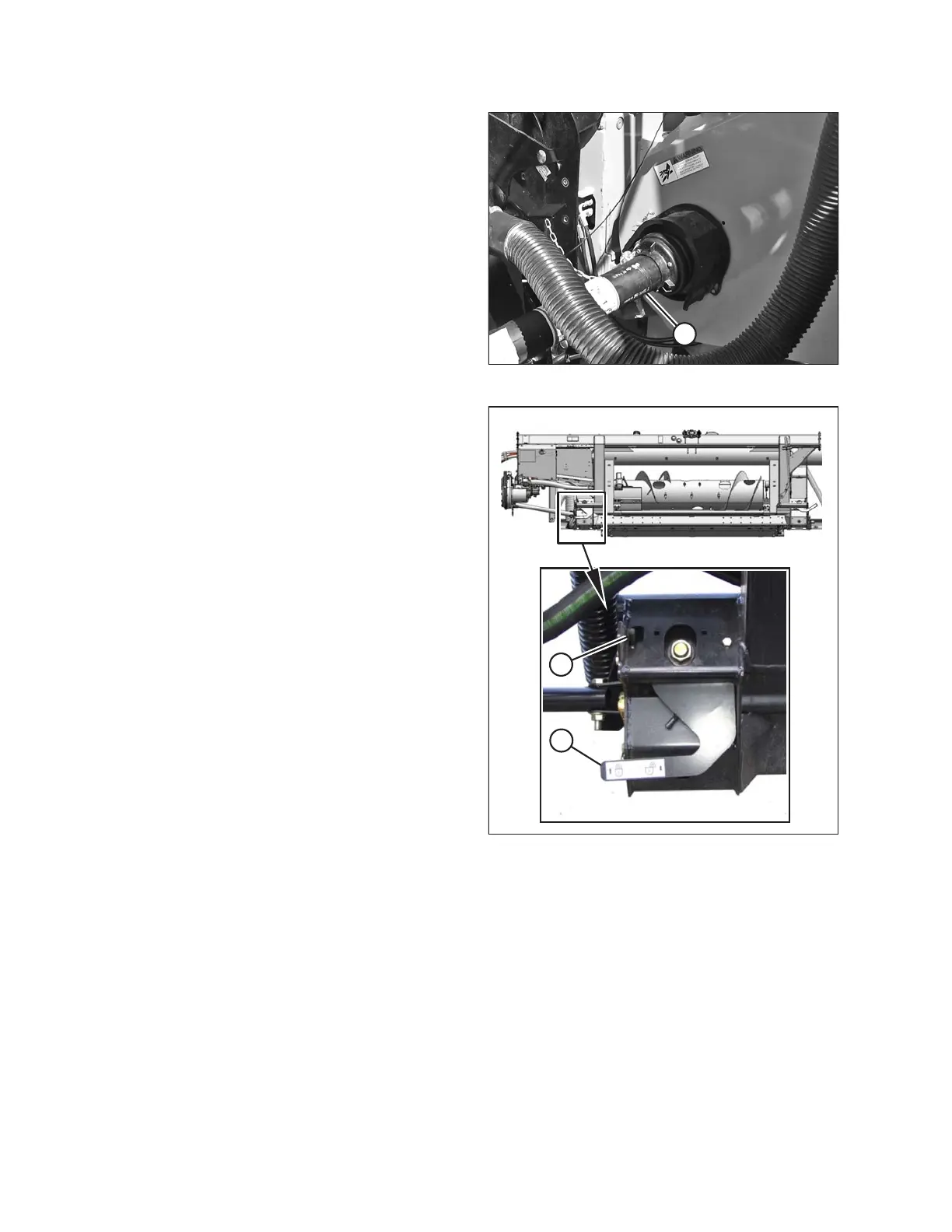

Figure 4.63: Driveline and Output Shaft
14. Attach driveline (A) to combine output shaft.
Figure 4.64: Float Lock in UNLOCK Position
15. Disengage each adapter float lock by moving latch (A)
away from adapter and moving both header float lock
levers (B) down (UNLOCK).
