MacDon FD75 - Disengaging Reel Safety Props

214323 30 Revision A
1001695
A
C
B

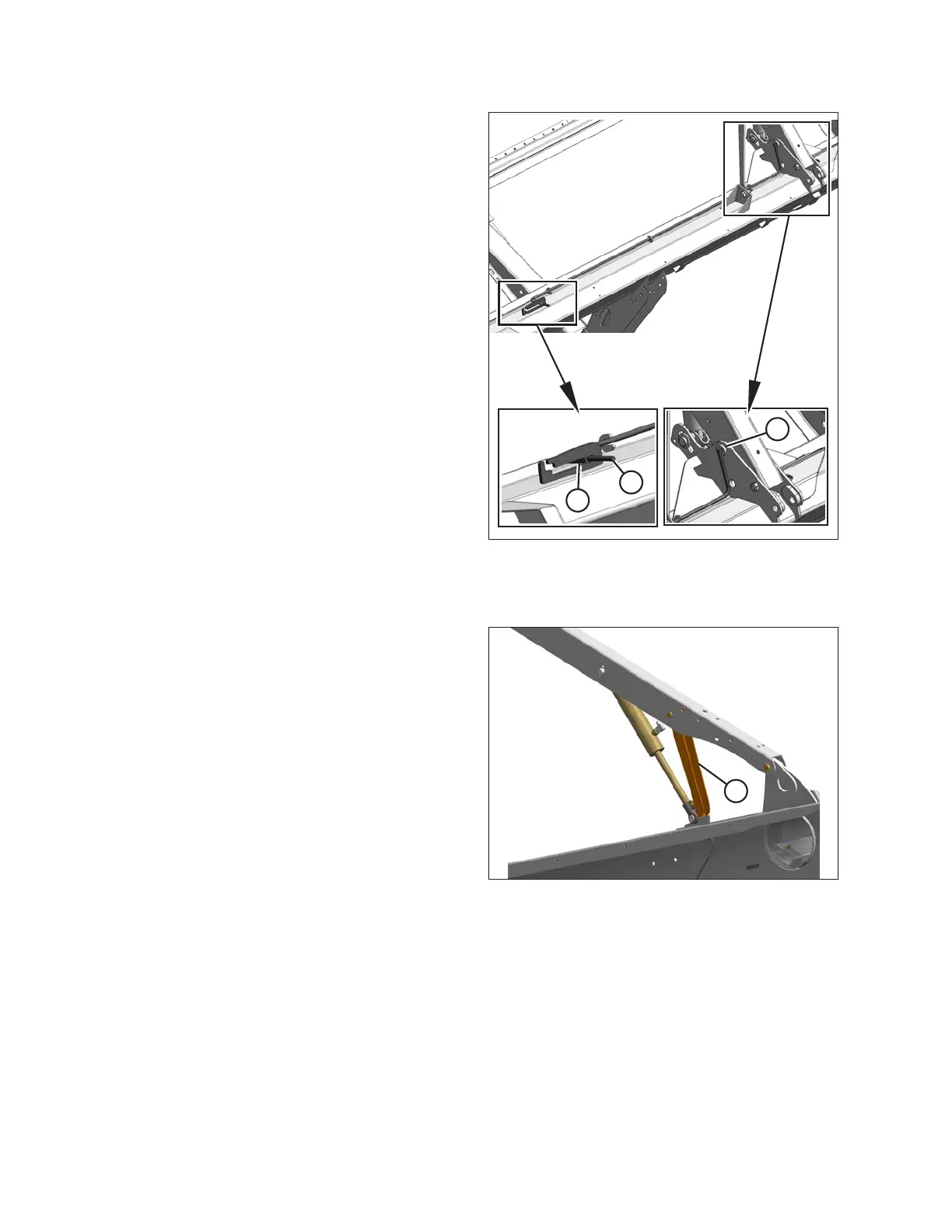

Figure 3.4: Reel Safety Prop – Center Arm
3. Use handle (A) to move lock rod to inboard position (B)
which engages pin (C) under prop.
4. Lower reel until safety props contact the outer arm
cylinder mounts and the center arm pins.
Disengaging Reel Safety Props
1004154
A
Figure 3.5: Reel Safety Prop – Left Side
Outer Arm
1. Raise the reel to maximum height.
2. Move the reel safety props (A) back inside the
reel arms.
