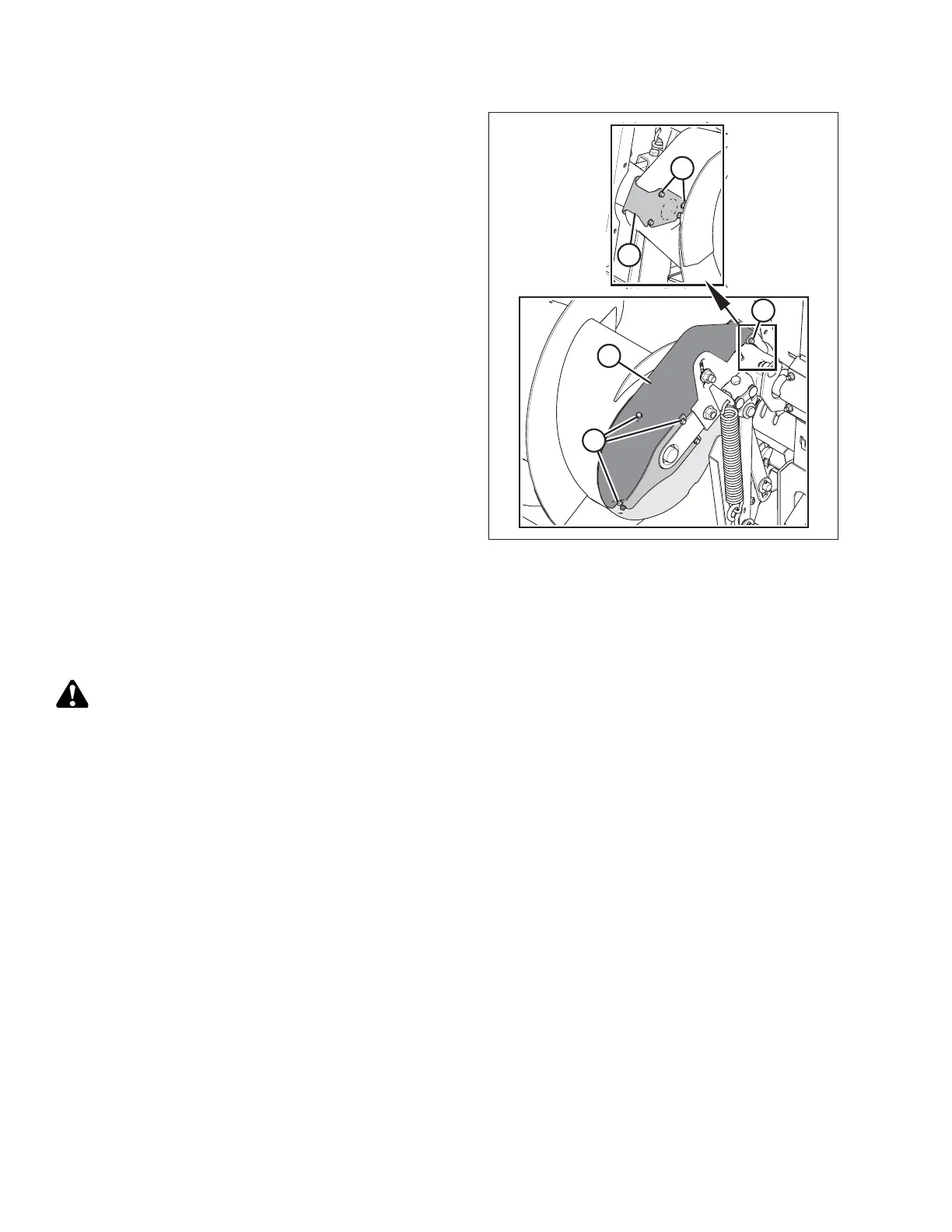

Figure 5.65: Auger Drive
16. Install top cover (C).
17. Install four bolts (A).
18. Install bolts (B) on cover retainer plate (D).
5.7.4 Removing Auger Drive Chain
The chain tensioner can take up slack for only a single pitch. Replace the chain when the chain has worn or
stretched beyond the limits of the tensioner.
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
1. Detach the header from the combine. For instructions, refer to 4 Header Attachment/Detachment, page 269.
2. Shut down the combine, and remove the key from the ignition.
