214323 73 Revision A
Adjusting Wing Balance
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
before adjusting machine.
Before proceeding, check the wing balance to verify how to adjust the wing. Refer to Checking Wing Balance, page
67.
NOTE:
Left side is shown.

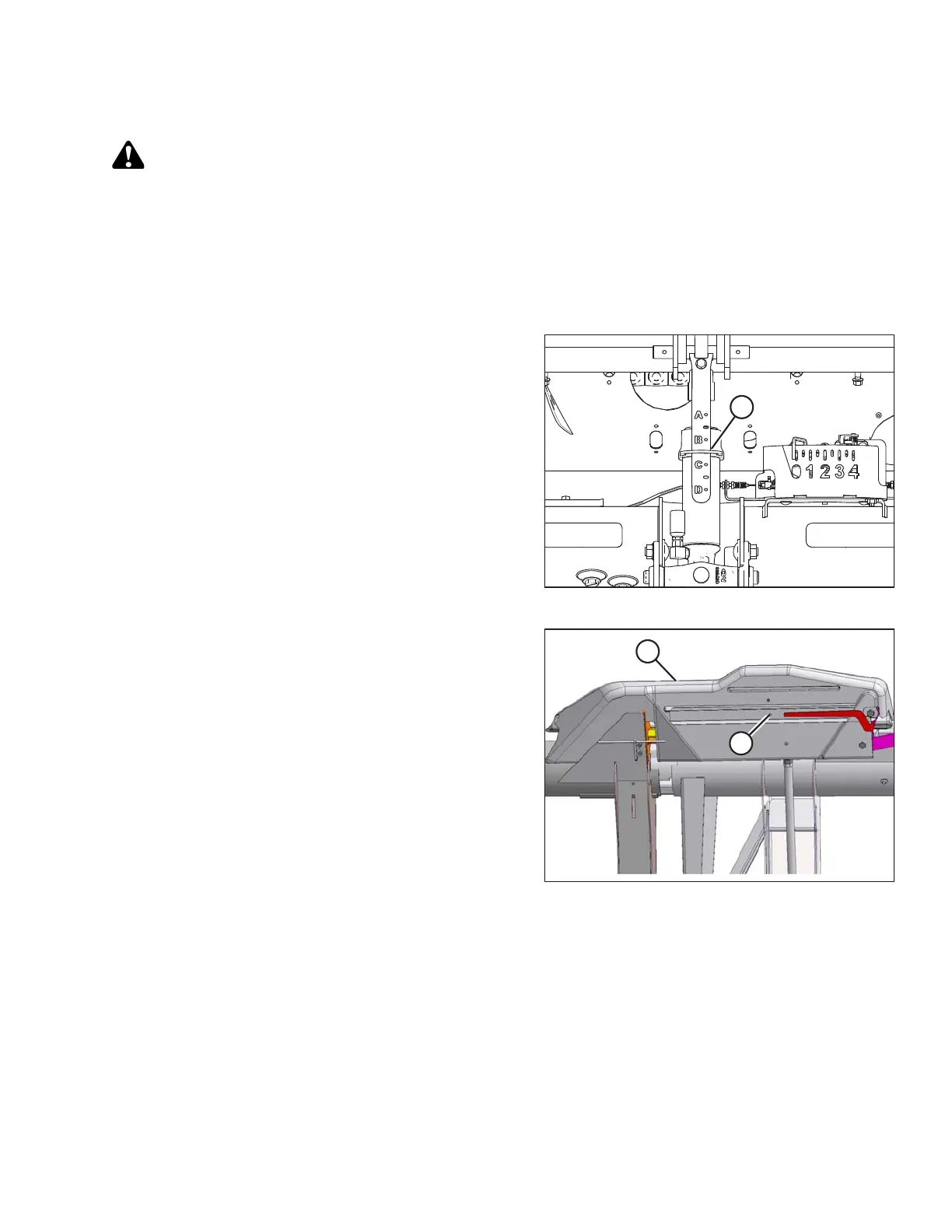

Figure 3.68: Center-Link
1. Extend the header center-link to between B and C on
indicator (A).
2. Park combine on level ground and raise header until
cutterbar is 152–254 mm (6–10 in.) off the ground.
3. Stop engine and remove key.
4. If installed, move transport/stabilizer wheels so that
they are supported by header. Refer to 3.7.1 Cutting
Height, page 53.
Figure 3.69: Linkage Cover
5. Remove linkage cover (A) by removing bolt (B).
OPERATION
