5.10 Adapter Feed Draper
CAUTION
To avoid personal injury, before servicing machine or opening drive covers, refer to 5.1 Preparing Machine
for Servicing, page 321.
5.10.1 Replacing CA25 Feed Draper
Replace draper if torn, cracked, or missing slats.
DANGER
To avoid bodily injury or death from unexpected start-up or fall of a raised machine, always stop engine
and remove key before leaving the operator’s seat, and always engage safety props before going under
the machine for any reason.
1. If attached to the combine, detach the header from the adapter. Refer to 4.7.1 Detaching Header from Adapter
and Combine, page 310.
2. Raise the feeder house to its full height, stop the engine, and the remove key from the ignition.
3. Engage the combine safety props.
1005638
A
B
C

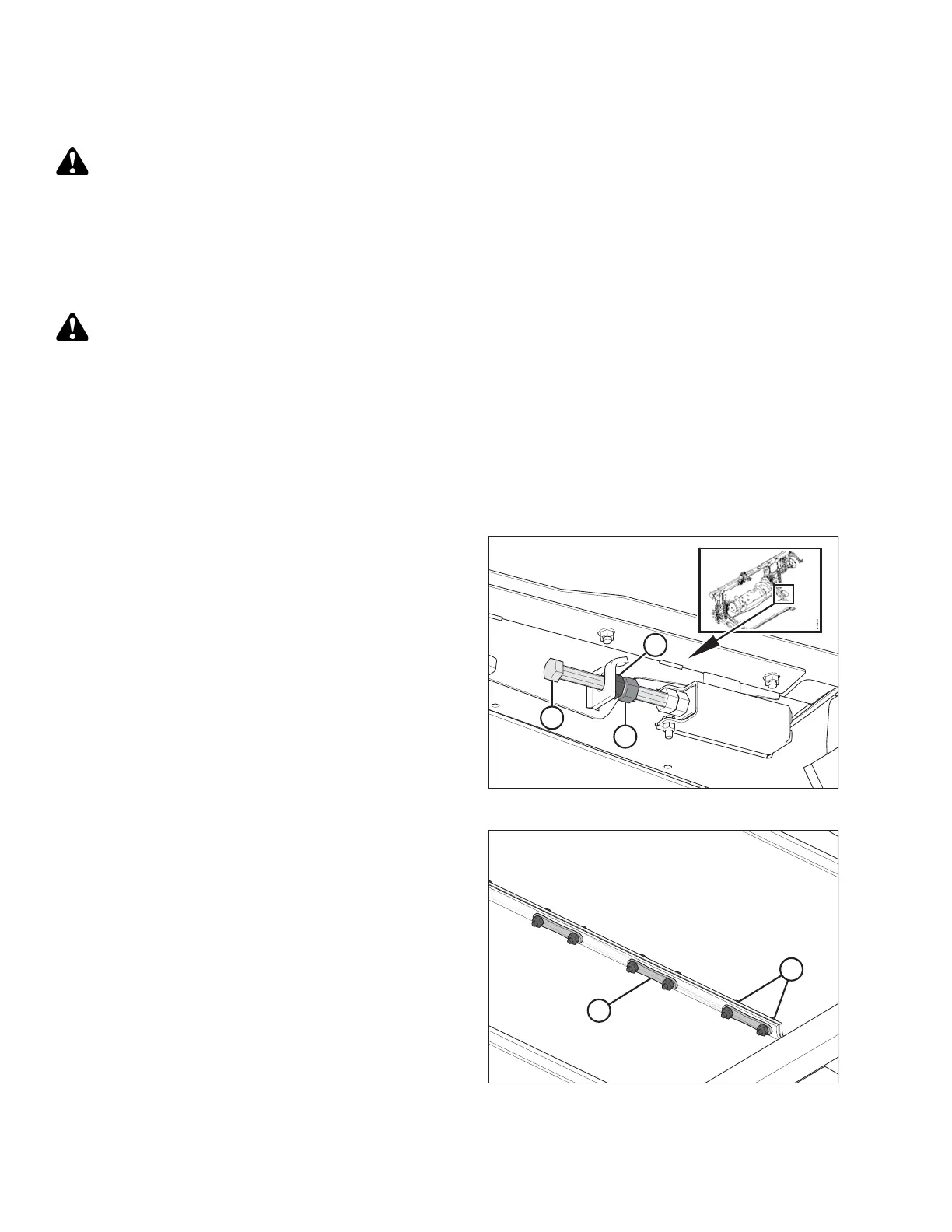

Figure 5.153: Tensioner
4. Loosen jam nut (A) and hold nut (B) with a wrench while
turning bolt (C) counterclockwise to release the draper
tension. Repeat at the opposite side.
5. Disengage the header safety props and lower the
feeder house and adapter onto blocks to keep the
adapter slightly off the ground.
1014024
A
B
Figure 5.154: Draper Connector
6. Remove screws (A) and nuts, and remove the draper
connector straps (B).
7. Pull the draper from the deck.
