MacDon FD75 - Installing Crop Divider Rods; Removing Crop Divider Rods

214323 100 Revision A
Removing Crop Divider Rods
1010234
A
B

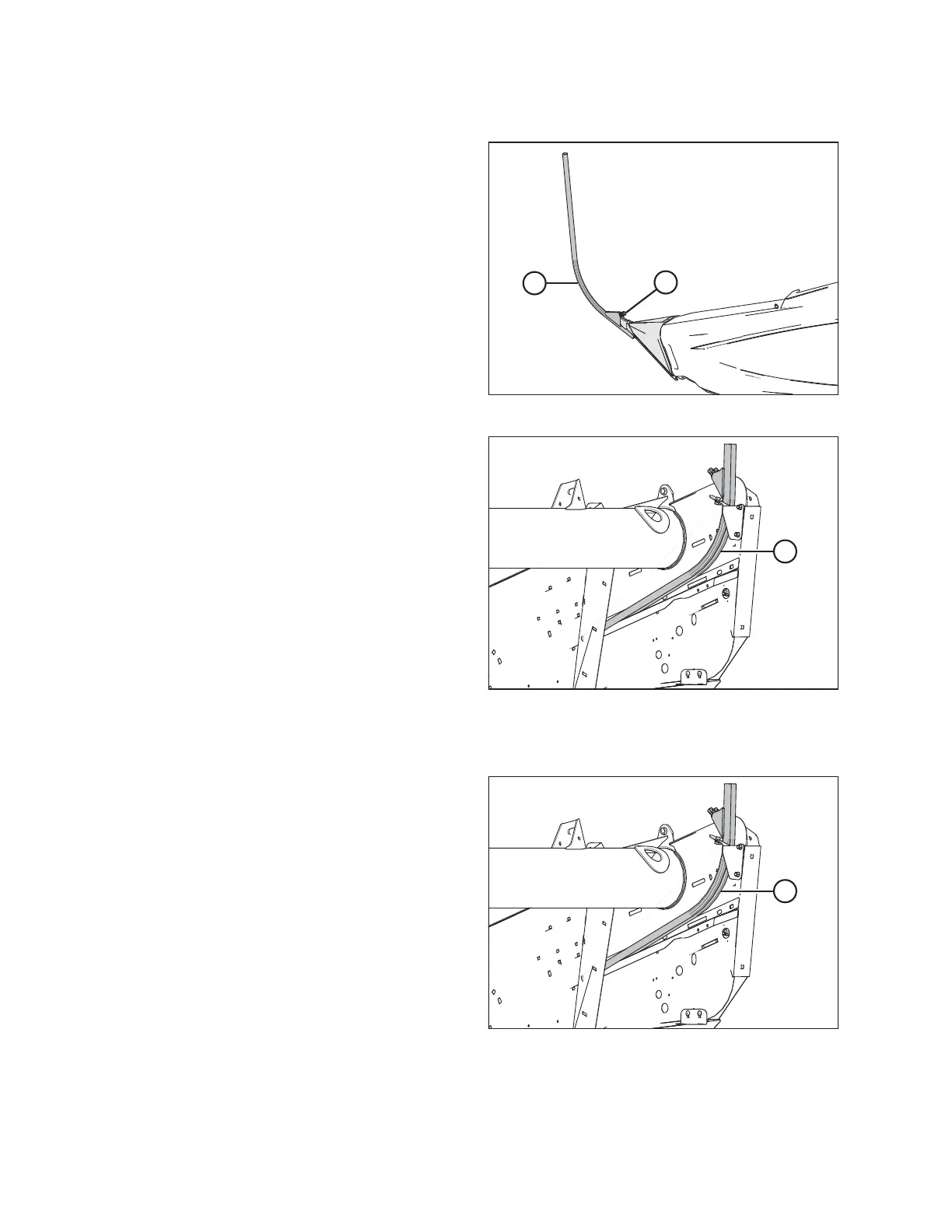

Figure 3.119: Crop Divider Rod
1. Loosen bolt (A) and remove crop divider rod (B) from
both sides of header.
1004684
A
Figure 3.120: Right Endsheet
2. Store both crop divider rods (A) inboard on the right
endsheet.
Installing Crop Divider Rods
1004684
A
Figure 3.121: Right Endsheet
1. Remove crop divider rods (A) from storage location on
inboard of right endsheet.
OPERATION
