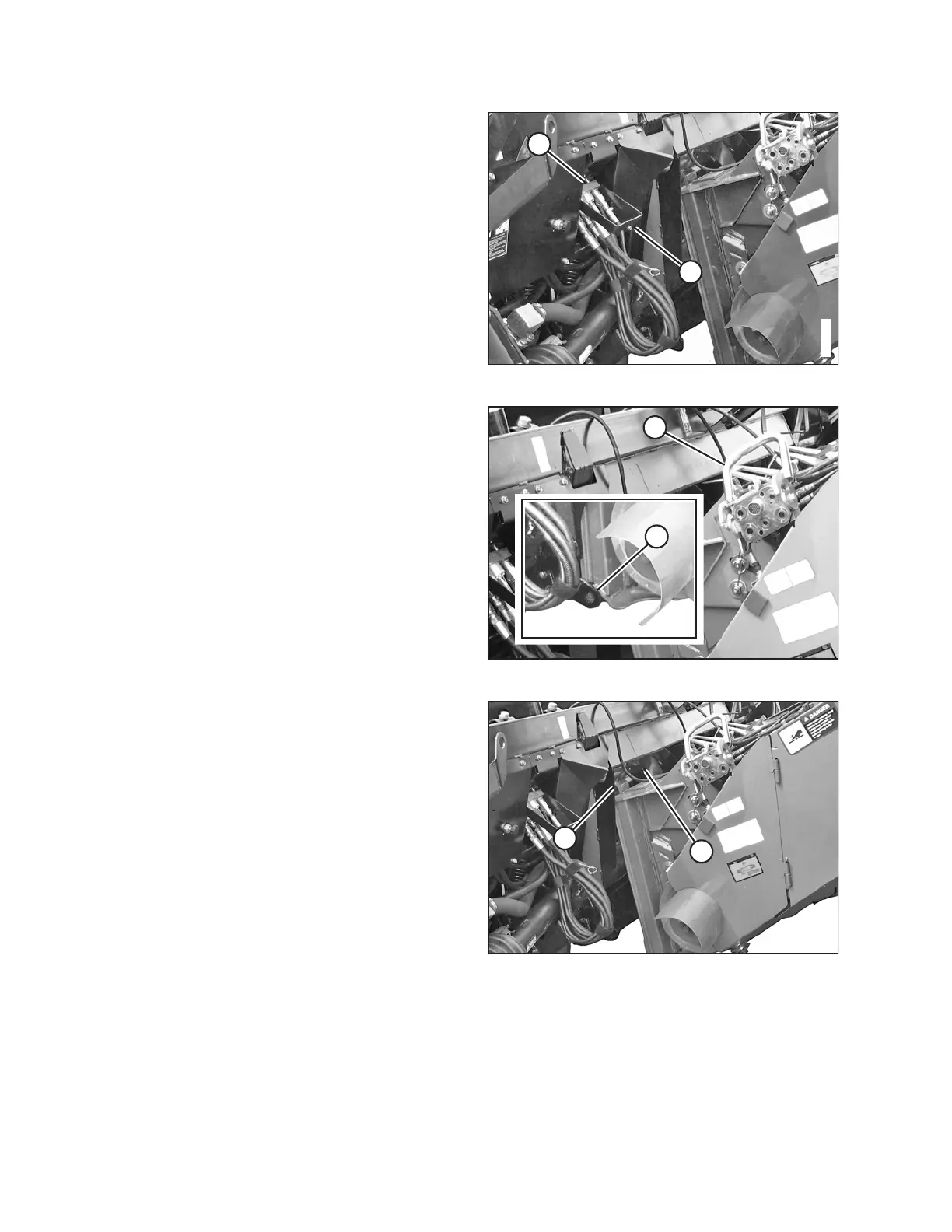

Figure 4.52: Multicoupler Storage
10. Position the multicoupler (A) on the adapter receptacle
and lower the handle (B) to lock the multicoupler.
1001422
A
B
Figure 4.53: Feeder House Locks
11. Push the handle (A) on the combine towards the feeder
house to disengage the feeder house pin (B) from
the adapter.
1001428
A
B
Figure 4.54: Header/Feeder House
12. Lower the feeder house until the saddle (A) disengages
and clears the adapter support (B).
13. Back the combine away slowly from the adapter.
