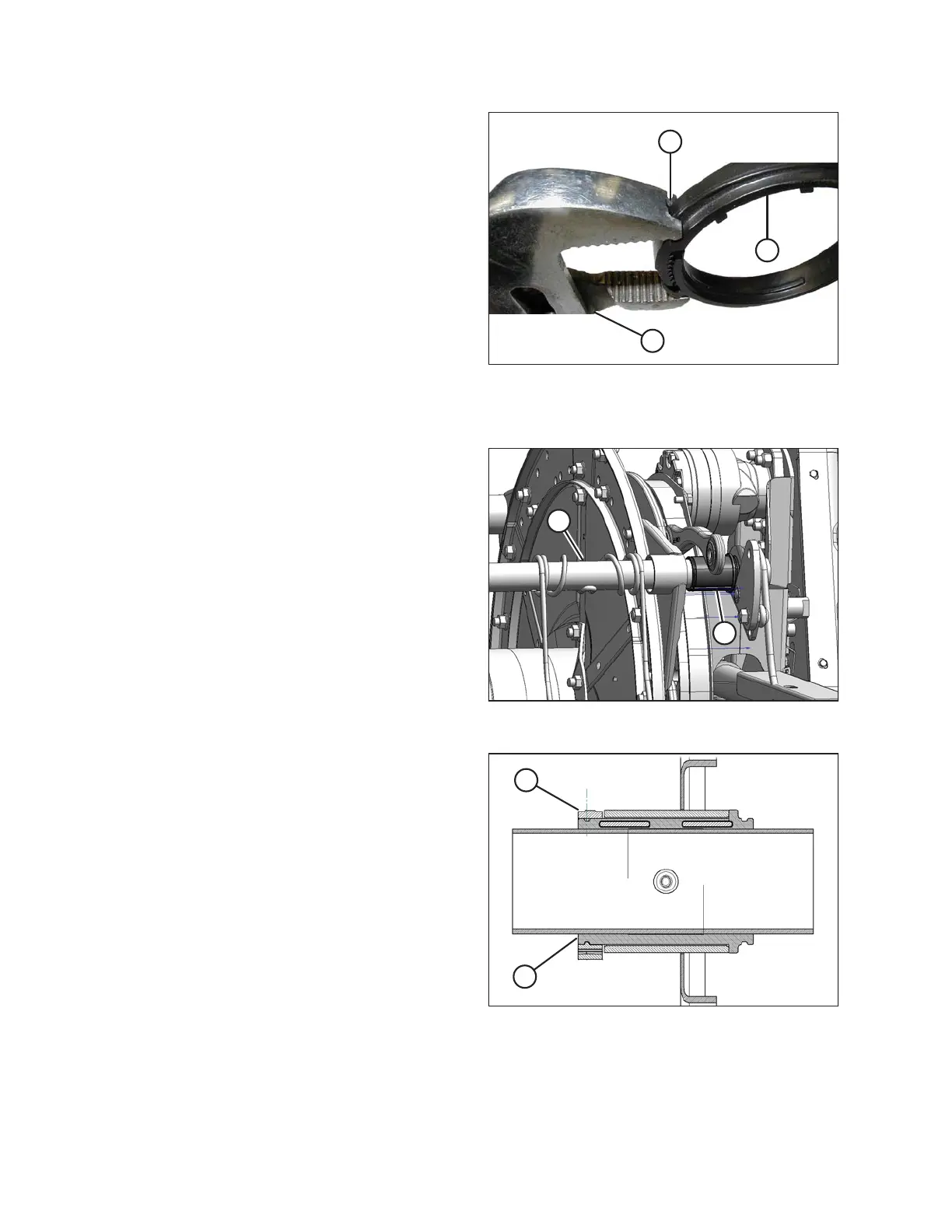

Figure 5.256: Modified Pliers
NOTE:
Use a pair of modified channel lock pliers (A) to install
bushing clamps (C). Secure pliers in a vice and grind a
notch (B) into the end of each arm to fit the clamp
as shown.
Installing cam end bushings
Figure 5.257: Cam End
1. Position bushing halves (B) on the tine tube with the
flangeless end adjacent to the reel arm, and position
the lug in each bushing half into the hole in the
tine tube.
2. Slide tine tube (A) towards the tail end of the reel to
insert bushing (B) into the reel arm.
NOTE:
If the tine tube supports are installed, ensure the
bushings at those locations slide into the support.
3. Reinstall the previously removed fingers or tines. Refer
to the following procedures as necessary:
• Removing Plastic Fingers, page 443
• Removing Steel Tines, page 441
Figure 5.258: Bushing
4. Install bushing clamp (A) onto the tine tube adjacent to
the flangeless end of bushing (B).
5. Position clamp (A) on bushing (B) so the edges of the
clamp and bushing are flush when the clamp is fit into
the groove on the bushing and the lock tabs
are engaged.
