214323 453 Revision A

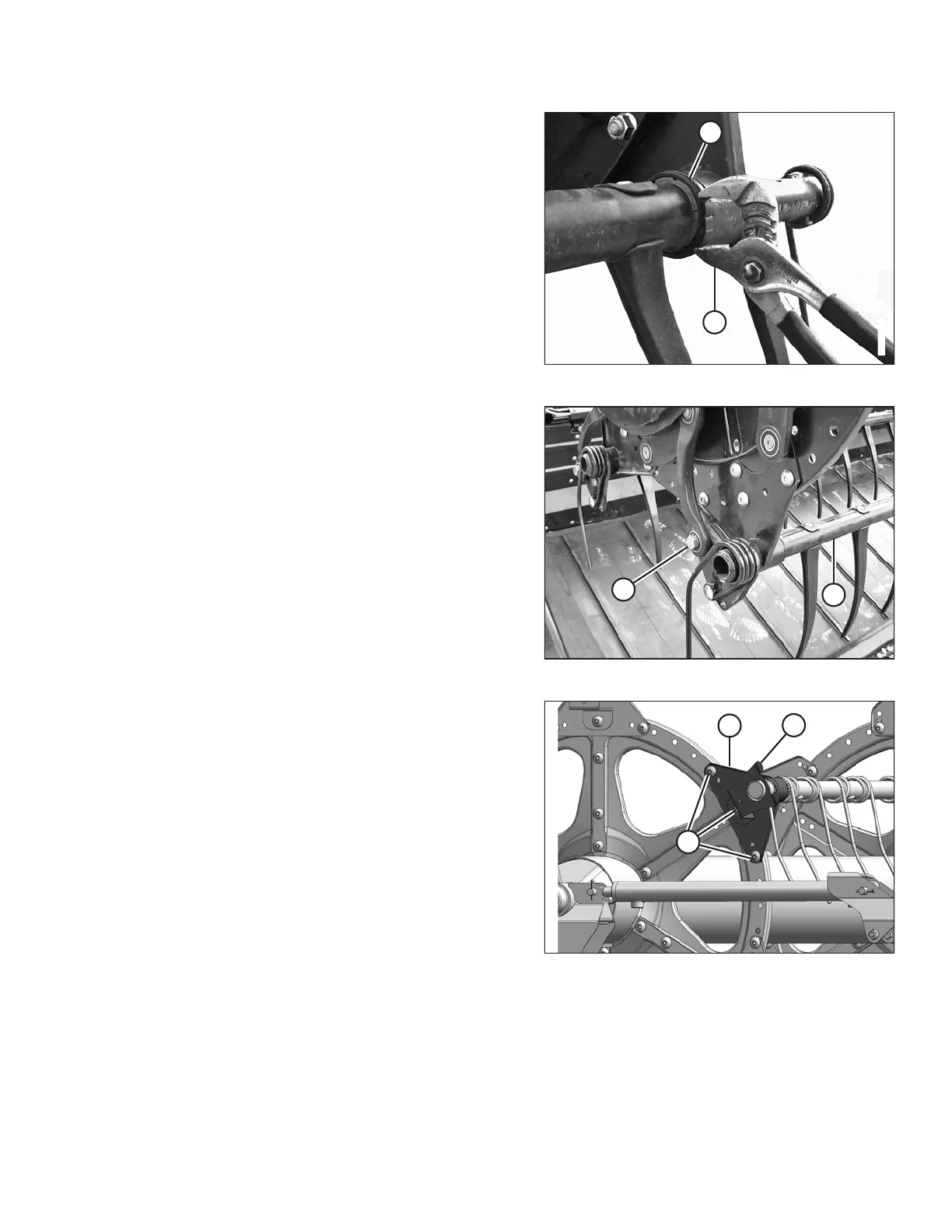

Figure 5.259: Clamp on Bushing
6. Tighten clamp (A) using modified channel lock pliers (B)
until finger pressure will NOT move the clamp.
IMPORTANT:
Overtightening clamp may result in breakage.
Figure 5.260: Cam End
7. Line up tine bar (B) with the cam arm and install
bolt (A). Apply Loctite® to bolt, and torque to 165 Nm
(120 lbf·ft).
NOTE:
Make sure shim is between cam arm and reel bat.
Figure 5.261: Tail End
8. Install bolts (A) securing arm (B) to the center disc.
9. Install reel arm (B) and endshield support (C) to the tail
end of the reel at the applicable tine tube location and
secure with bolts (A).
MAINTENANCE AND SERVICING
