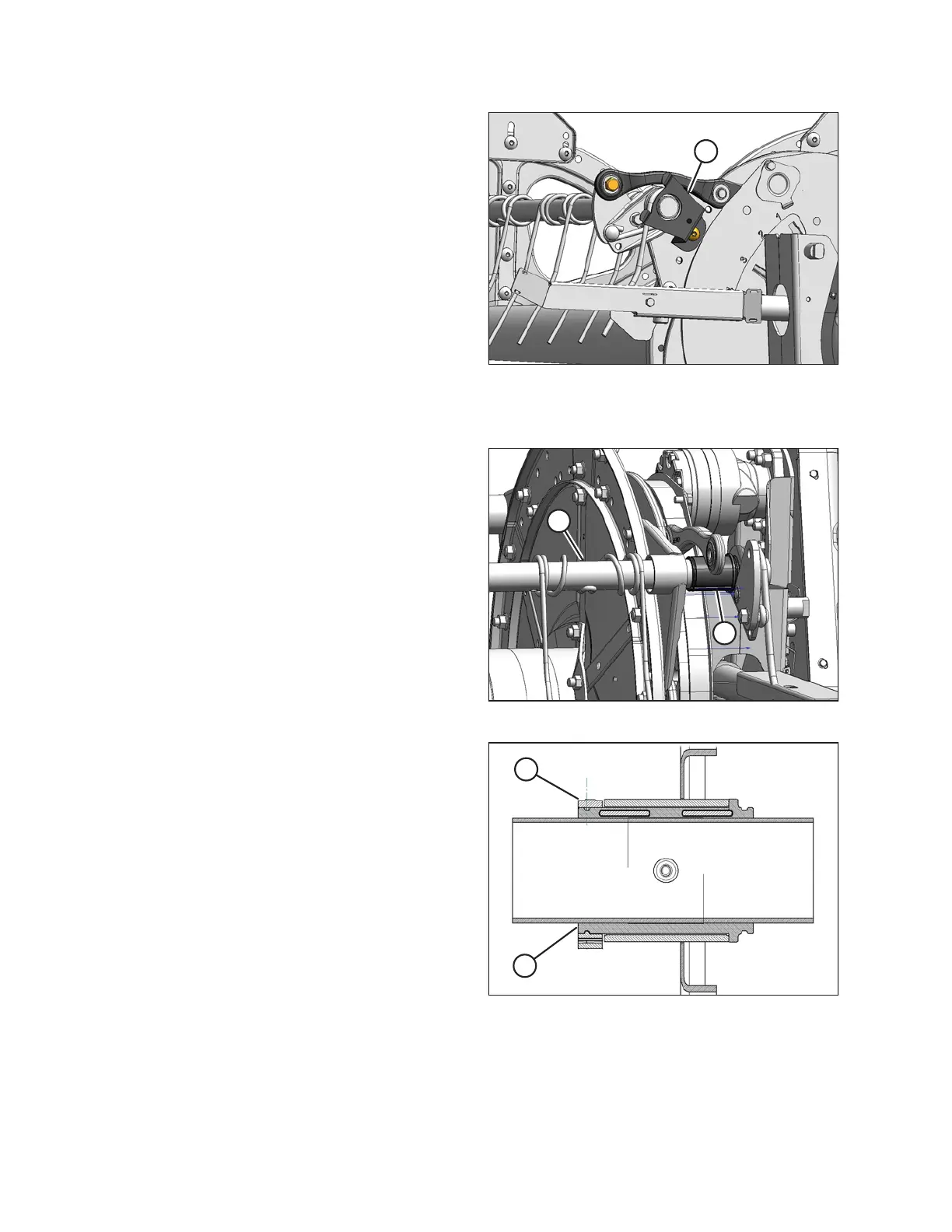

Figure 5.262: Cam End
10. Install endshield support (A) at the applicable tine tube
location at the cam end.
11. Reinstall the reel endshields. Refer to 5.13.6 Reel
Endshields, page 458.
Installing center disc and tail end bushings
Figure 5.263: Cam End
12. Position bushing halves (B) on the tine tube with the
flangeless end adjacent to the reel arm, and position
the lug in each bushing half into the hole in the
tine tube.
13. Slide the reel arm (A) onto the bushing (B) and position
against the disc at the original location.
14. Reinstall the previously removed fingers or tines. Refer
to the following procedures as necessary:
• Removing Plastic Fingers, page 443
• Removing Steel Tines, page 441
Figure 5.264: Bushing
15. Install bushing clamp (A) onto the tine tube adjacent to
the flangeless end of bushing (B).
16. Position clamp (A) on bushing (B) so the edges of the
clamp and bushing are flush when the clamp is fit into
the groove on the bushing and the lock tabs
are engaged.
