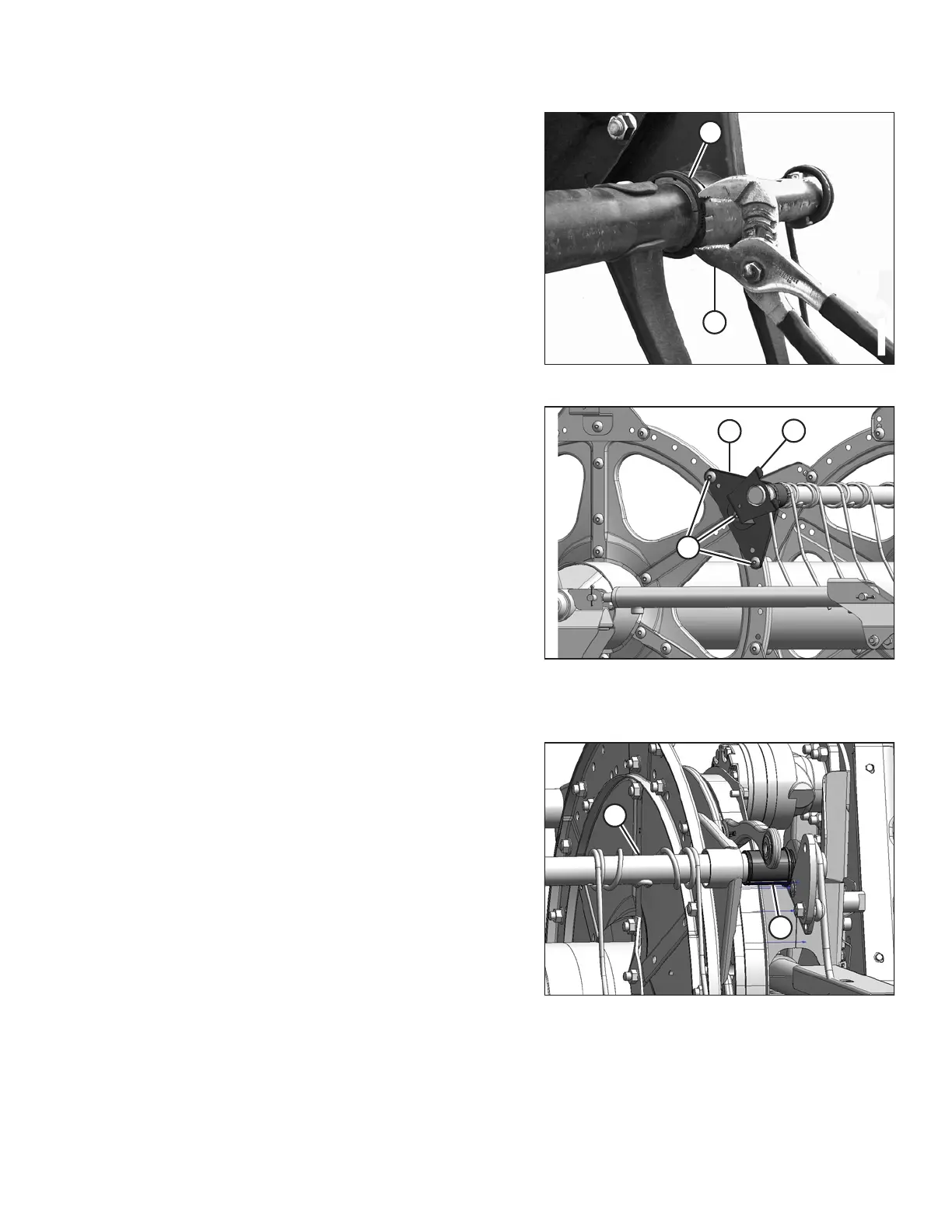

Figure 5.265: Clamp on Bushing
17. Tighten clamp (A) using modified channel lock pliers (B)
until finger pressure will NOT move the clamp.
IMPORTANT:
Overtightening clamp may result in breakage.
Figure 5.266: Tail End
18. Install bolts (A) securing arm (B) to the center disc.
19. Install reel arm (B) and endshield support (C) to the tail
end of the reel at the applicable tine tube location and
secure with bolts (A).
Installing tine tube support (if installed) bushings
Figure 5.267: Cam End
20. Position bushing halves (B) on the tine tube with the
flangeless end adjacent to the reel arm, and position
the lug in each bushing half into the hole in the
tine tube.
