214323 456 Revision A

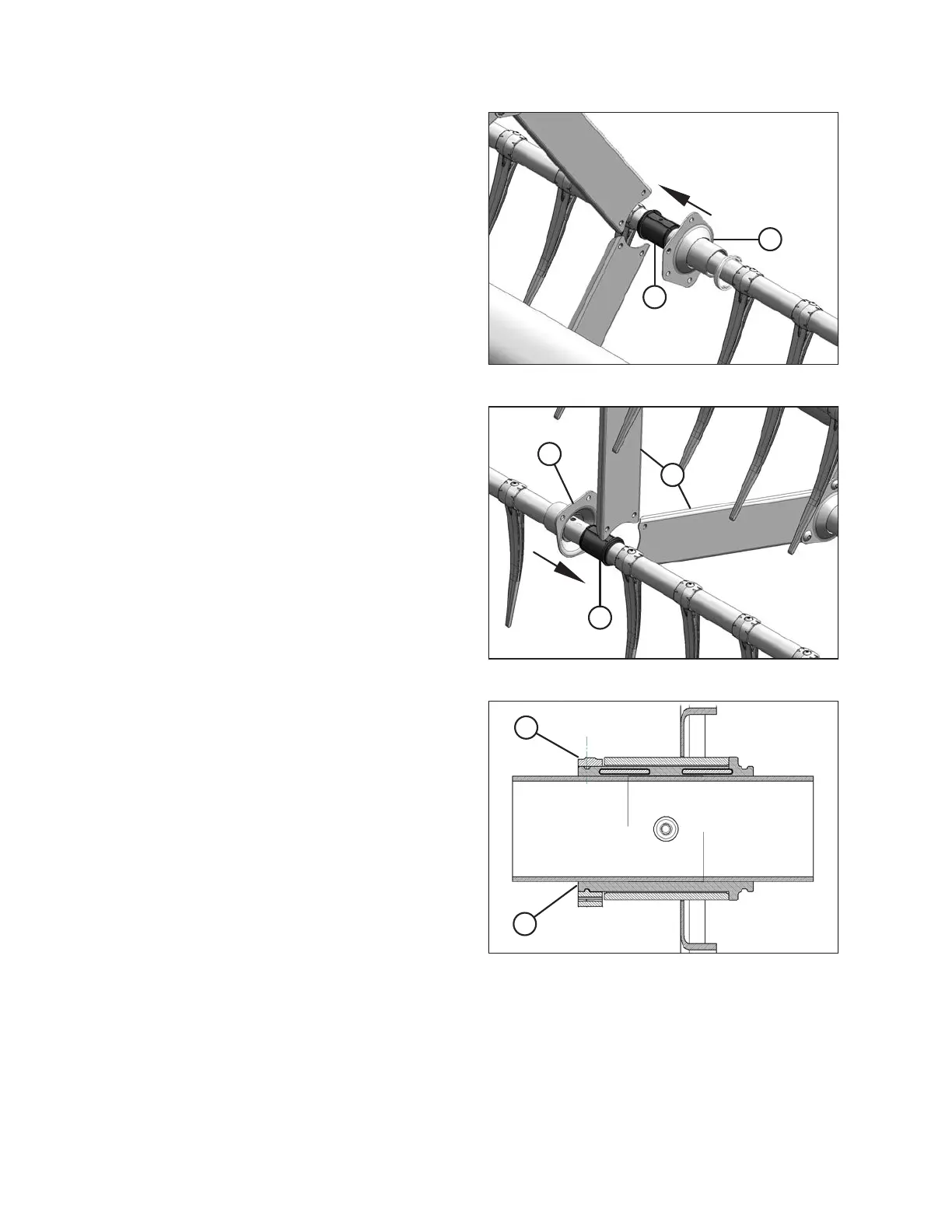

Figure 5.268: Support
Figure 5.269: Opposite Support
21. Slide support (A) onto bushing (B). For the opposite tine
tube, rotate support (A) or slightly move the tine tube
until it clears channels (C).
Figure 5.270: Bushing
22. Install bushing clamp (A) onto the tine tube adjacent to
the flangeless end of bushing (B).
23. Position clamp (A) on bushing (B) so the edges of the
clamp and bushing are flush when the clamp is fit into
the groove on the bushing and the lock tabs
are engaged.
MAINTENANCE AND SERVICING
