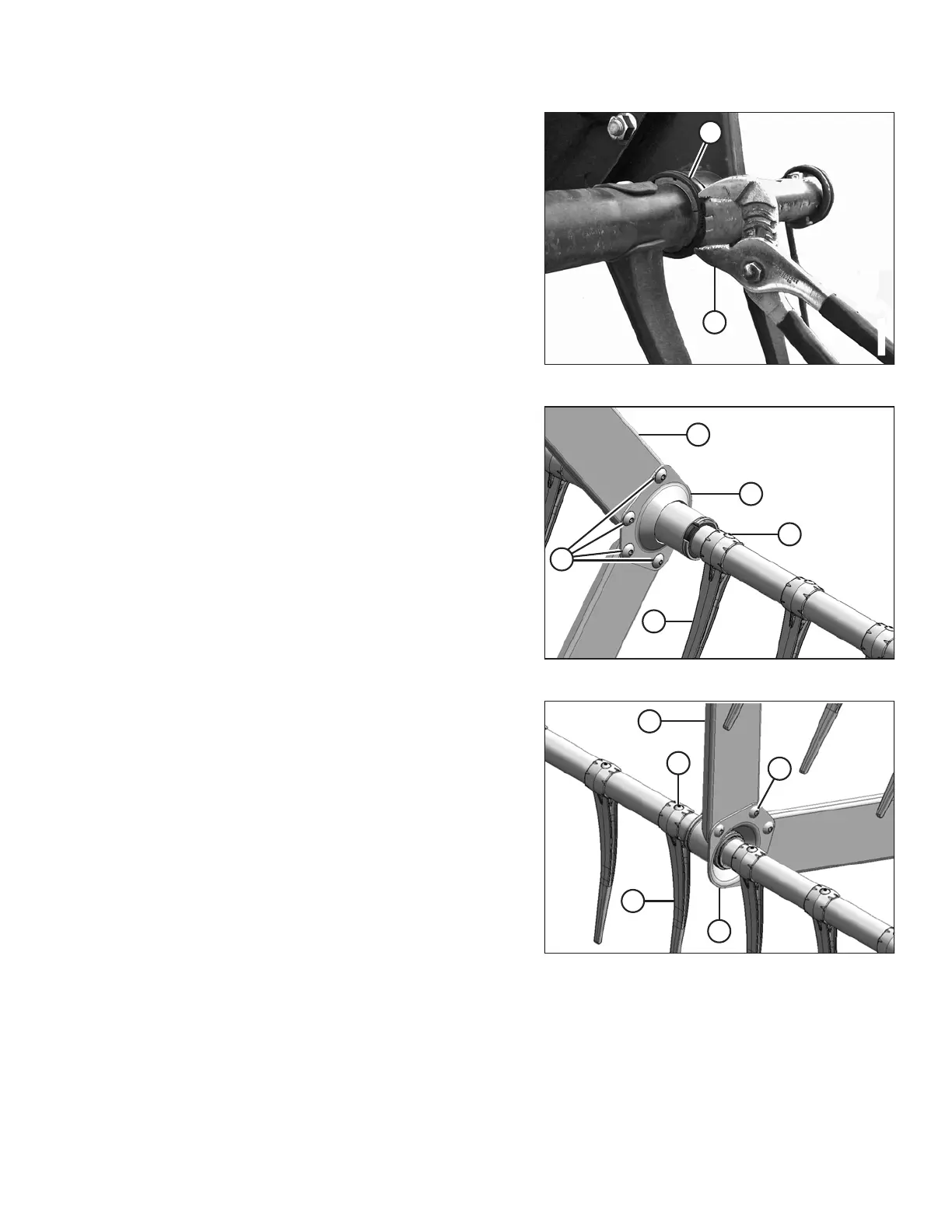

Figure 5.271: Clamp on Bushing
24. Tighten clamp (A) using modified channel lock pliers (B)
until finger pressure will NOT move the clamp.
IMPORTANT:
Overtightening clamp may result in breakage.
Figure 5.272: Tine Tube Support
Figure 5.273: Opposite Support
25. Reattach channels (C) to support (A) with screws (B)
and nuts. Torque screws to 43 Nm (32 lbf∙ft).
26. Reinstall any fingers (D) that were previously removed
using screws (E). Refer to Installing Plastic Fingers,
page 445.
