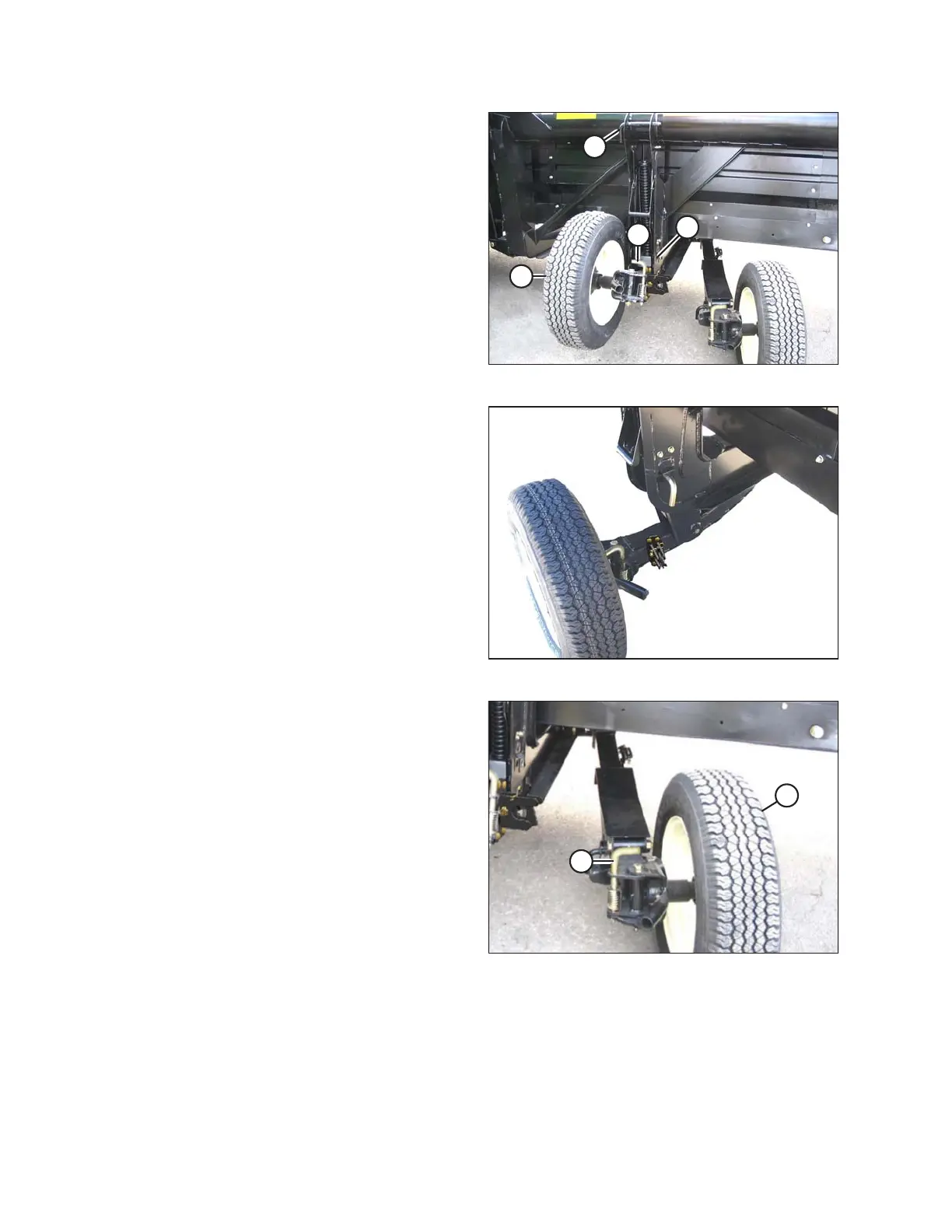

Figure 3.465: Wheel Position
6. Remove pin (A) and install at location (B) to secure the
linkage. Turn the pin to lock.
7. Pull pin (D), swivel the wheel (C) counterclockwise 90°,
and release the pin to lock.
Figure 3.466: Left Wheel in Transport Position
8. Ensure the left wheel is in the transport position
as shown.
Figure 3.467: Right Rear Wheel
9. Pull pin (A) and swivel right rear wheel (B)
clockwise 90°.
