214323 263 Revision A

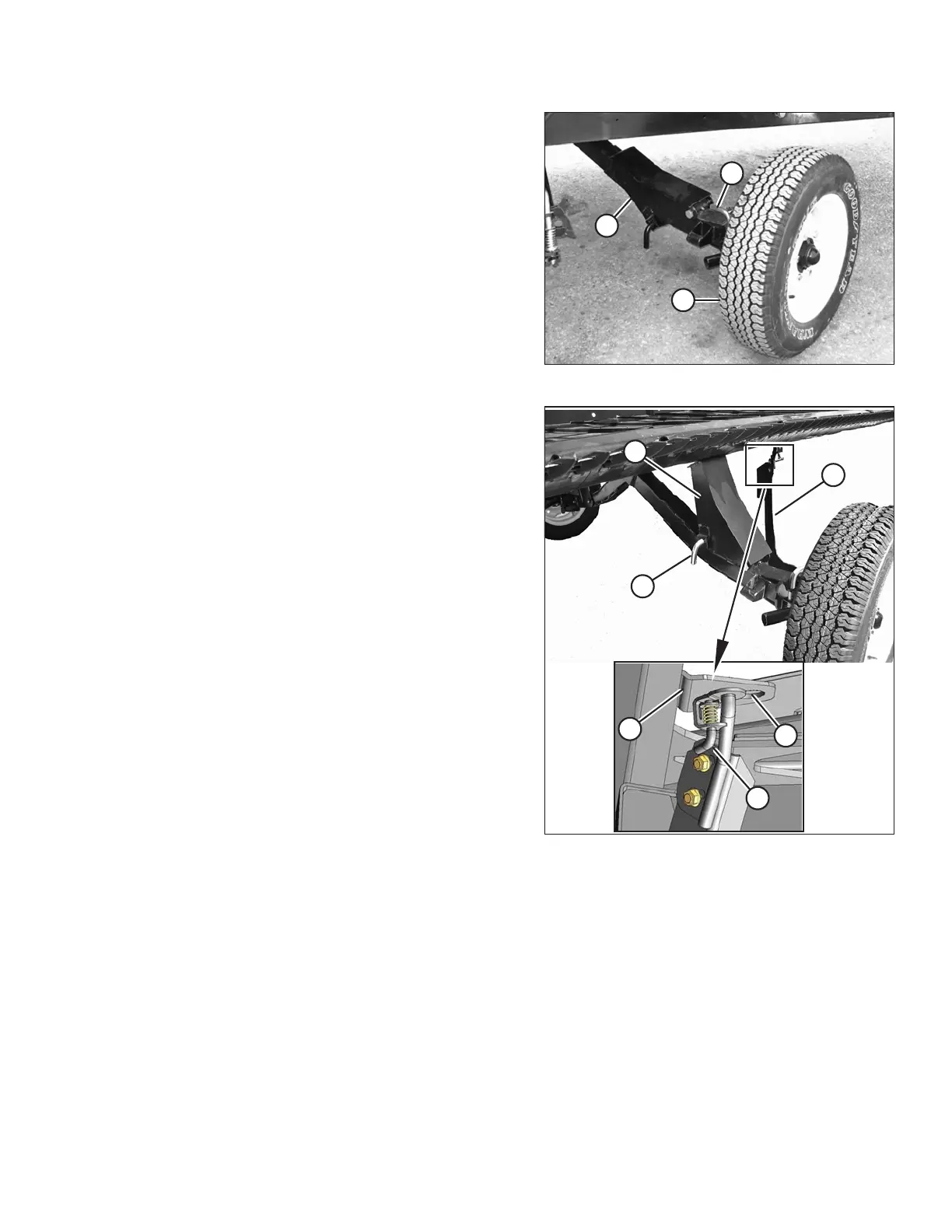

Figure 3.468: Right Rear Wheel
10. Lock wheel (A) with pin (B). Move right axle (C) to the
front of the header.
Figure 3.469: Right Rear Wheel Position
11. Remove pin (A), raise support (B) to the position
shown, and reinsert pin.
IMPORTANT:
Ensure pin (A) engages the tube on the axle.
12. Swing brace (C) into the position shown and insert the
brace into slot (D) behind the cutterbar. Position the
brace so that pin (E) engages the hole in bracket (F).
The right hand wheel is now in transport position.
13. Disengage the header cylinder lift stops.
14. Detach the header’s hydraulic and electrical
connections from the combine. Refer to 4 Header
Attachment/Detachment, page 269.
15. Start the combine and lower the header to the ground.
OPERATION
