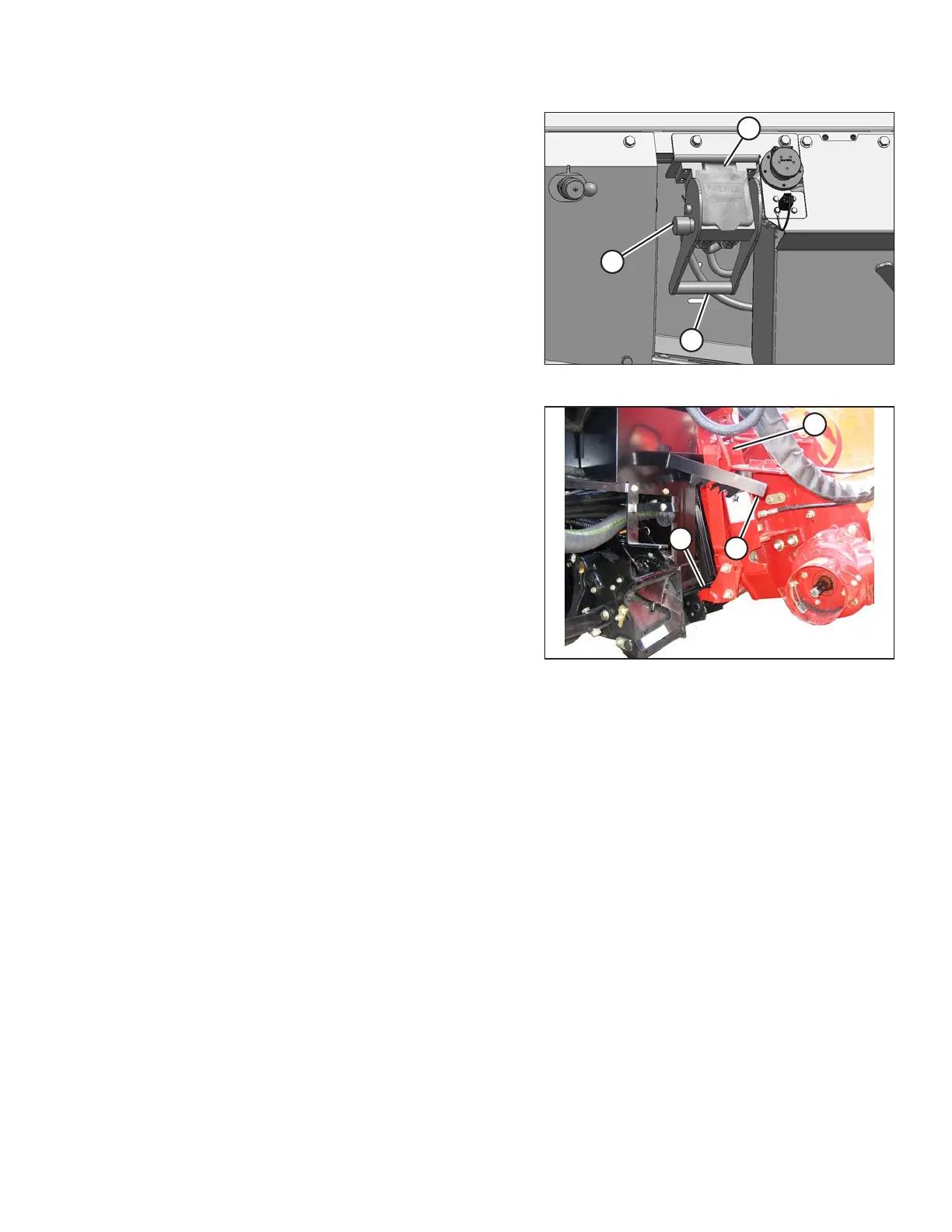

Figure 4.18: Adapter Receptacle
10. Push the handle (A) on the adapter receptacle to the
closed position until the lock button (B) snaps out.
Close the cover (C).
Figure 4.19: Feeder House Locks
11. Lift the lever (A) and pull and lower the handle (B) to
disengage the feeder house/adapter lock (C).
12. Lower the feeder house until it disengages the
adapter support.
13. Back the combine away slowly from the adapter.
HEADER ATTACHMENT/DETACHMENT
