214323 276 Revision A

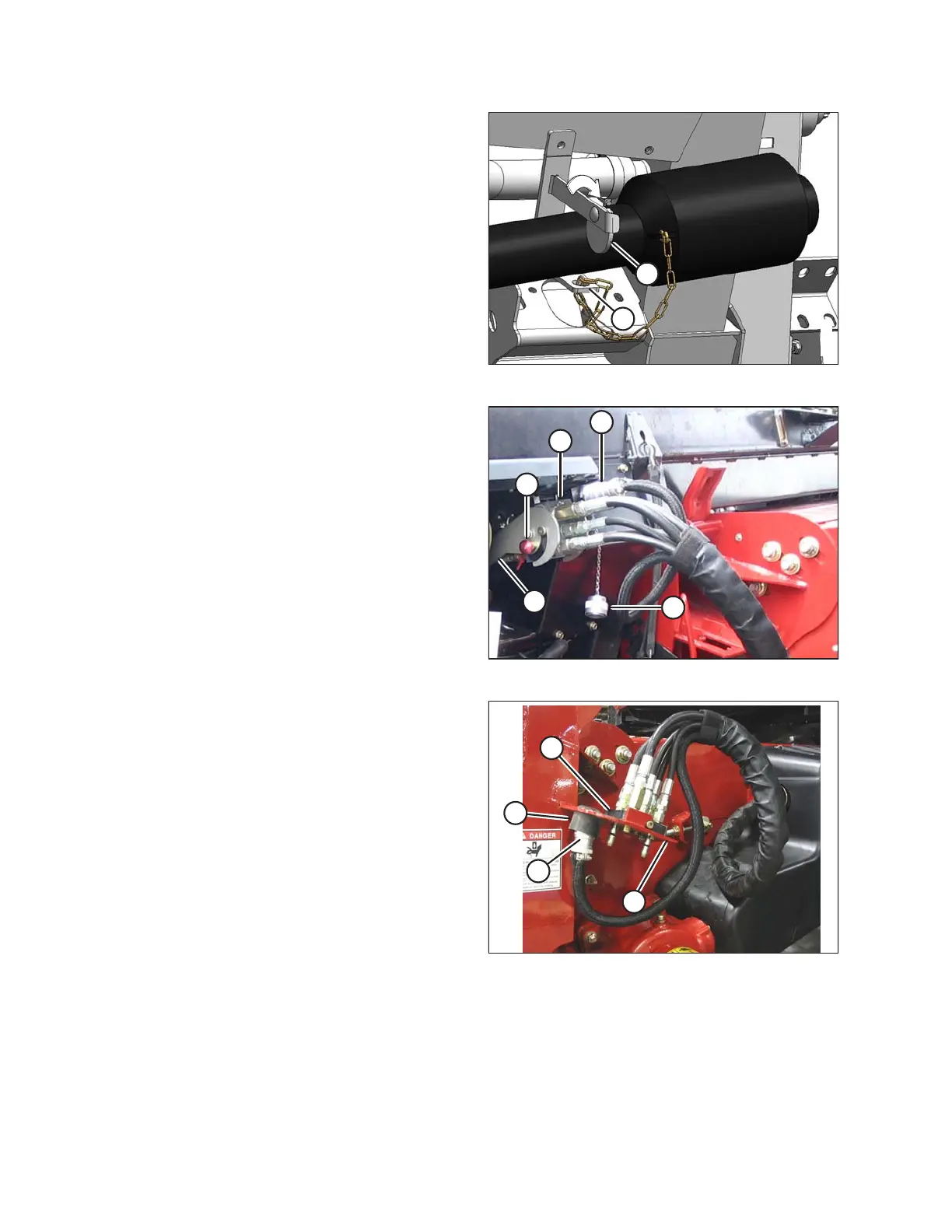

Figure 4.15: Driveline
5. Slide the driveline into the hook (A) until the disc (B)
drops securing the driveline in place.
Figure 4.16: Multicoupler
6. Remove the electrical connector (A) and replace the
cover (B).
7. Push in the lock button (C) and pull the handle (D) to
release the multicoupler (E).
Figure 4.17: Multicoupler Storage
8. Position the multicoupler (A) onto the storage plate (B)
on the combine.
9. Place the electrical connector (C) in the storage
cup (D).
HEADER ATTACHMENT/DETACHMENT
