214323 423 Revision A

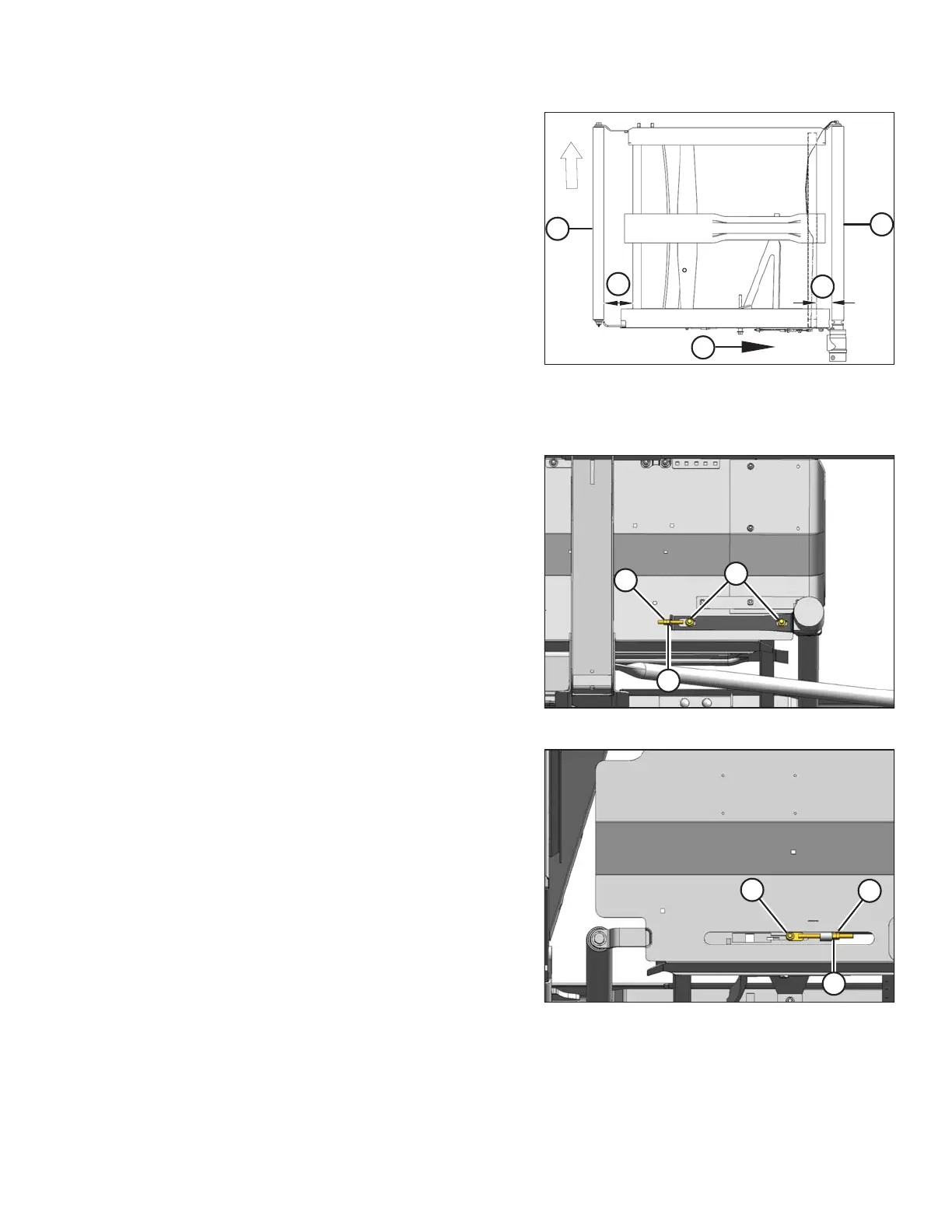

Figure 5.194: Draper Tracking Adjustments
A - Drive Roller B - Idler Roller
X - Drive Roller Adjust Y - Idler Roller Adjust
Z - Draper Rotation Direction
1. Refer to Table 5.1, page 422 to determine which roller
requires adjustment and which adjustments are
necessary.
NOTE:
To change X, adjust the back end of the roller using the
adjuster mechanism at the inboard end of the deck.
Figure 5.195: Left Side Drive Roller
2. Adjust the drive roller at X as follows:
a. Loosen nuts (A) and jam nut (B).
b. Turn the adjuster nut (C).
Figure 5.196: Left Side Idler Roller
3. Adjust the idler roller Y as follows:
a. Loosen nut (F) and jam nut (G).
b. Turn the adjuster nut (H).
NOTE:
If the draper does not track at the idler roller end after
the idler roller adjustment, the drive roller is likely not
square to the deck. Adjust the drive roller, and then
readjust the idler roller.
MAINTENANCE AND SERVICING
