214323 425 Revision A

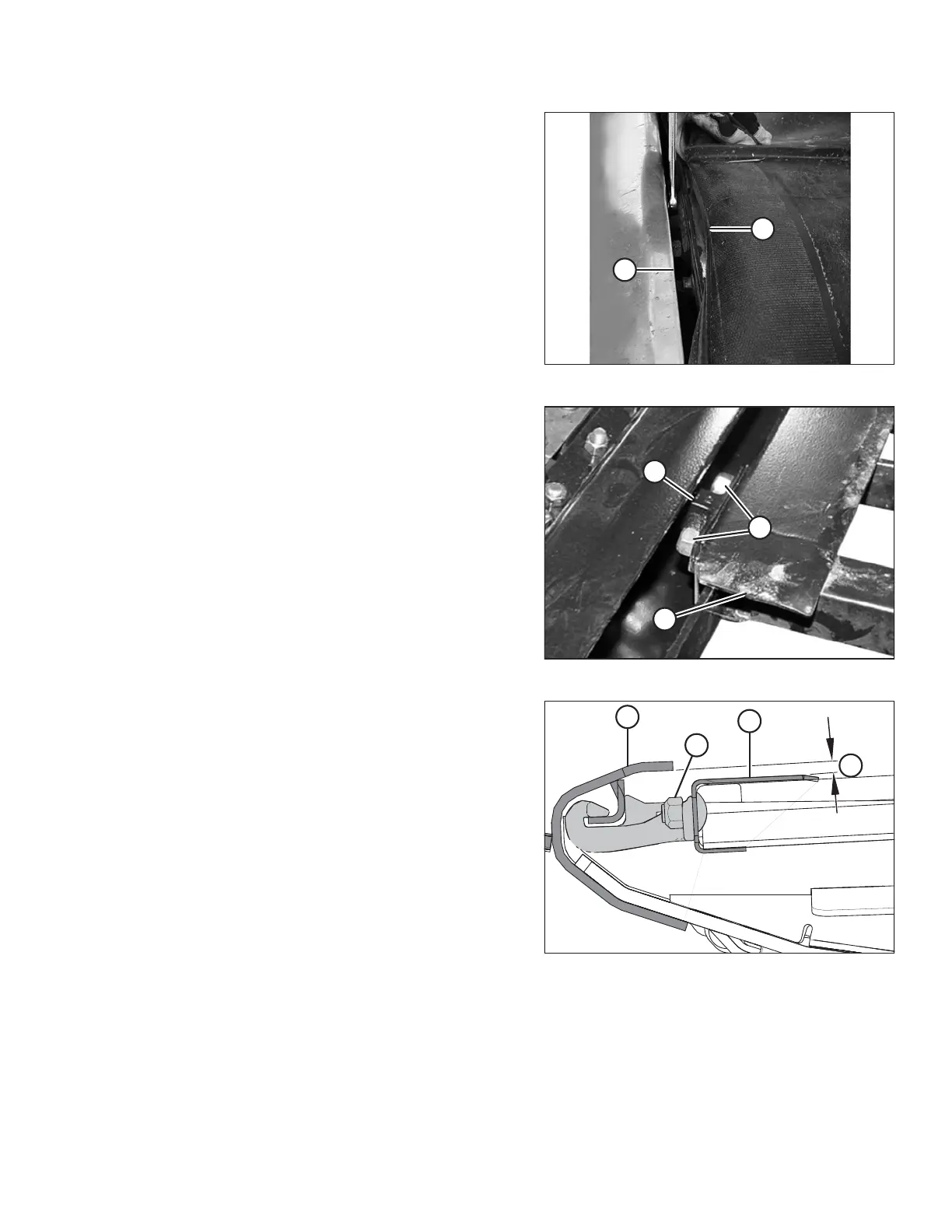

Figure 5.199: Deck Adjustment
5. Lift the front edge of the draper (A) past cutterbar (B) to
expose the deck support.
6. Measure and note the thickness of the draper belt.
Figure 5.200: Deck Support
7. Loosen the two lock nuts (A) on deck support (B) one-
half turn only.
NOTE:
The number of deck supports (B) is determined by the
header size: four on single reel headers, and eight on
double reel headers.
8. Tap deck (C) to lower the deck relative to the deck
supports. Tap deck support (B) using a punch to raise
the deck relative to the deck supports.
Figure 5.201: Deck Support
9. To create a seal, adjust deck (A) so that clearance (B)
between cutterbar and deck is 1 mm (1/16 in.) plus the
draper thickness as measured in Step 6, page 425.
10. Tighten deck support hardware (D).
11. Recheck gap (B). Refer to Step 9, page 425.
12. Tension the draper. Refer to 5.12.3 Checking and
Adjusting Side Draper Tension, page 420.
MAINTENANCE AND SERVICING
