214323 430 Revision A

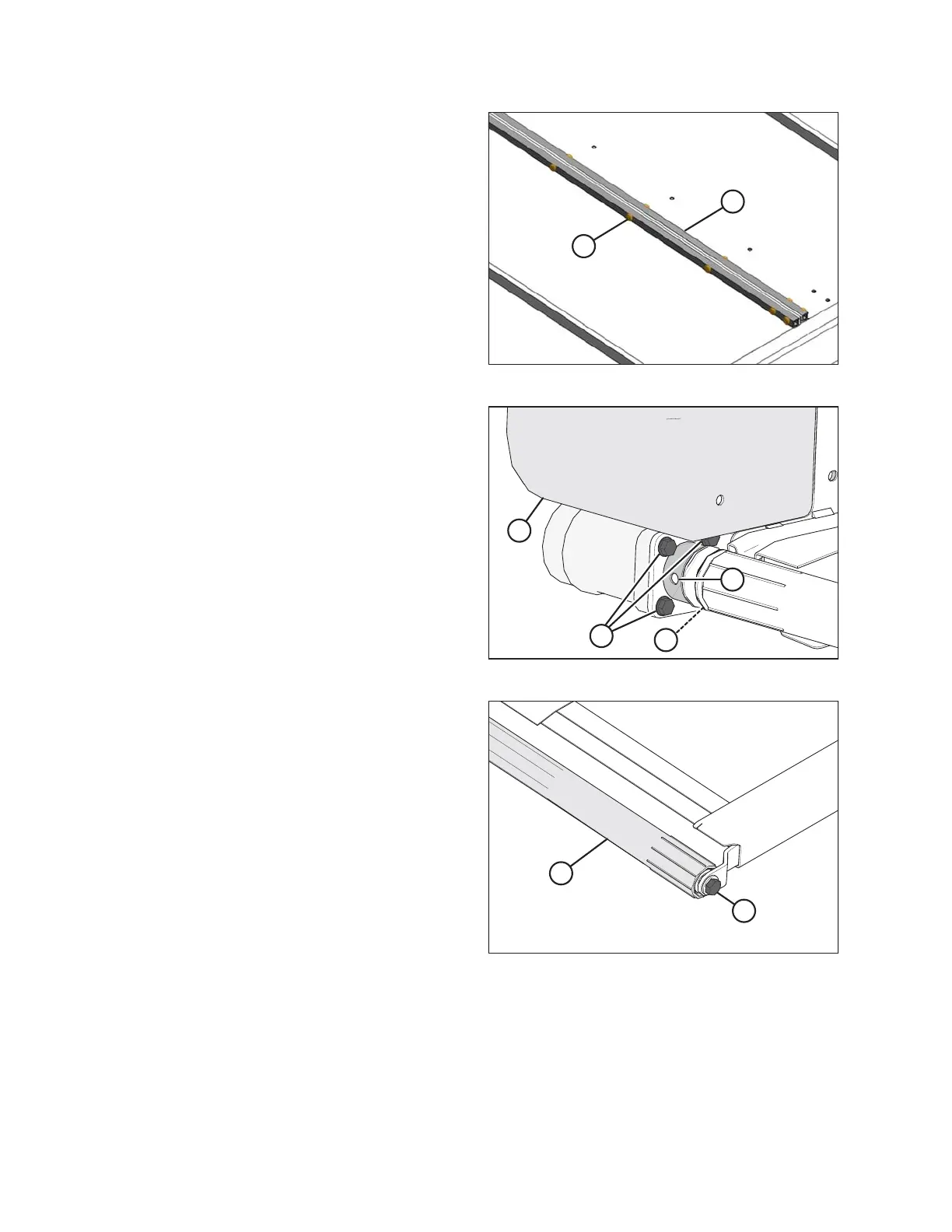

Figure 5.211: Draper Connector
5. Remove the connectors (B), screws (A), and nuts from
the draper joint to uncouple the draper.
6. Pull the draper off the drive roller.
Figure 5.212: Drive Roller
7. Align the setscrews with hole (A) in the guard. Remove
the two setscrews holding the motor onto the drive
roller.
NOTE:
The setscrews are 1/4 turn apart.
8. Remove the four bolts (B) securing the motor to the
drive roller arm.
NOTE:
It may be necessary to remove plastic shield (C) to gain
access to the top bolt.
Figure 5.213: Drive Roller
9. Remove bolt (A) securing the opposite end of drive
roller (B) to the support arm.
10. Remove drive roller (B).
MAINTENANCE AND SERVICING
