214323 287 Revision A

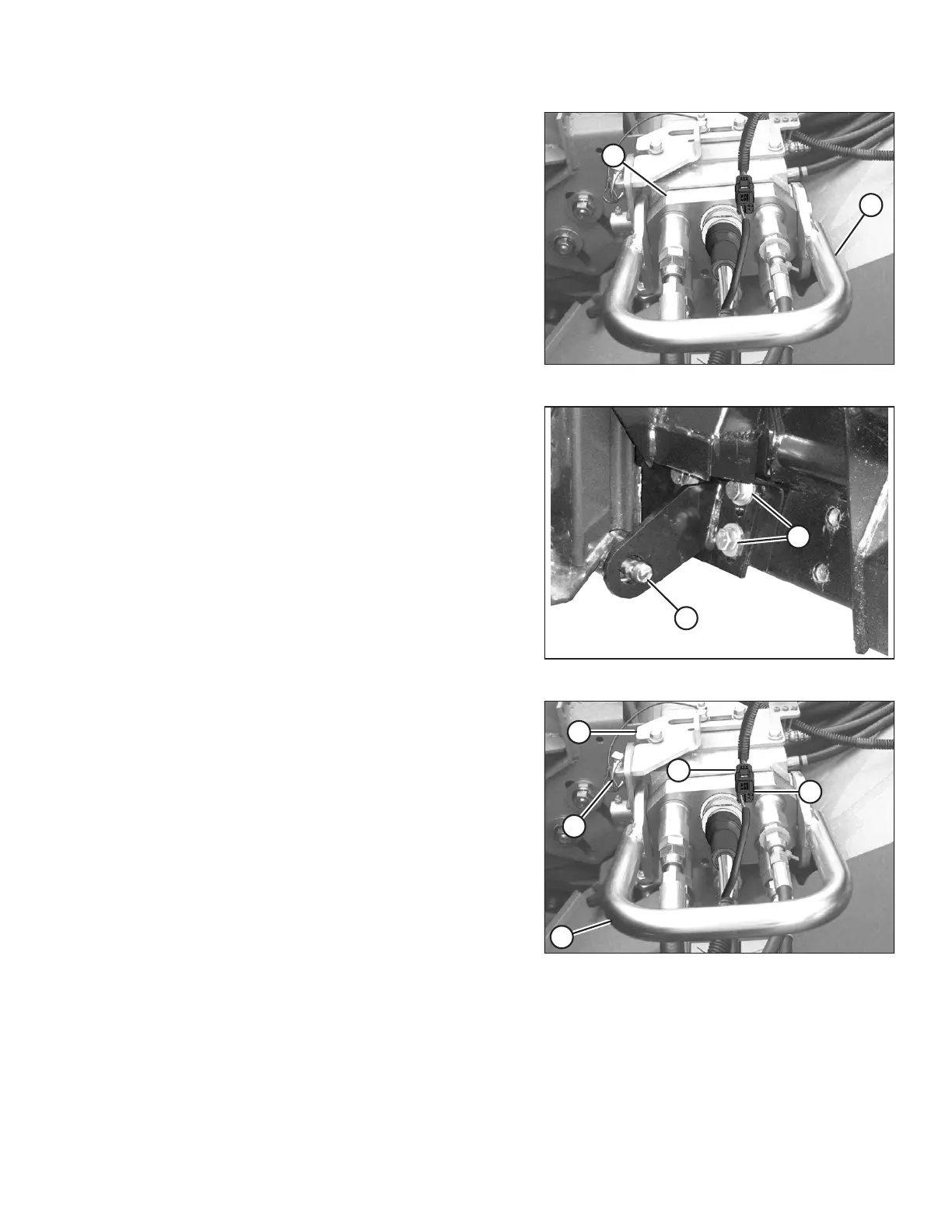

Figure 4.41: Multicoupler
6. Position multicoupler (A) onto receptacle, and pull
handle (B) to engage lugs on multicoupler into
the handle.
7. Pull handle (B) to a horizontal position and ensure
multicoupler (A) is fully engaged into receptacle.
Figure 4.42: Feeder House Pin
8. Ensure that both feeder house pins (A) are fully
engaged into adapter brackets.
NOTE:
If pins (A) do not fully engage adapter brackets, loosen
bolts (B) and adjust bracket as required.
9. Tighten bolts (B).
Figure 4.43: Multicoupler
10. Slide latch (A) to lock handle (B) in position and secure
with lynch pin (C).
11. Connect harness (D) to combine connector (E).
HEADER ATTACHMENT/DETACHMENT
