214323 288 Revision A

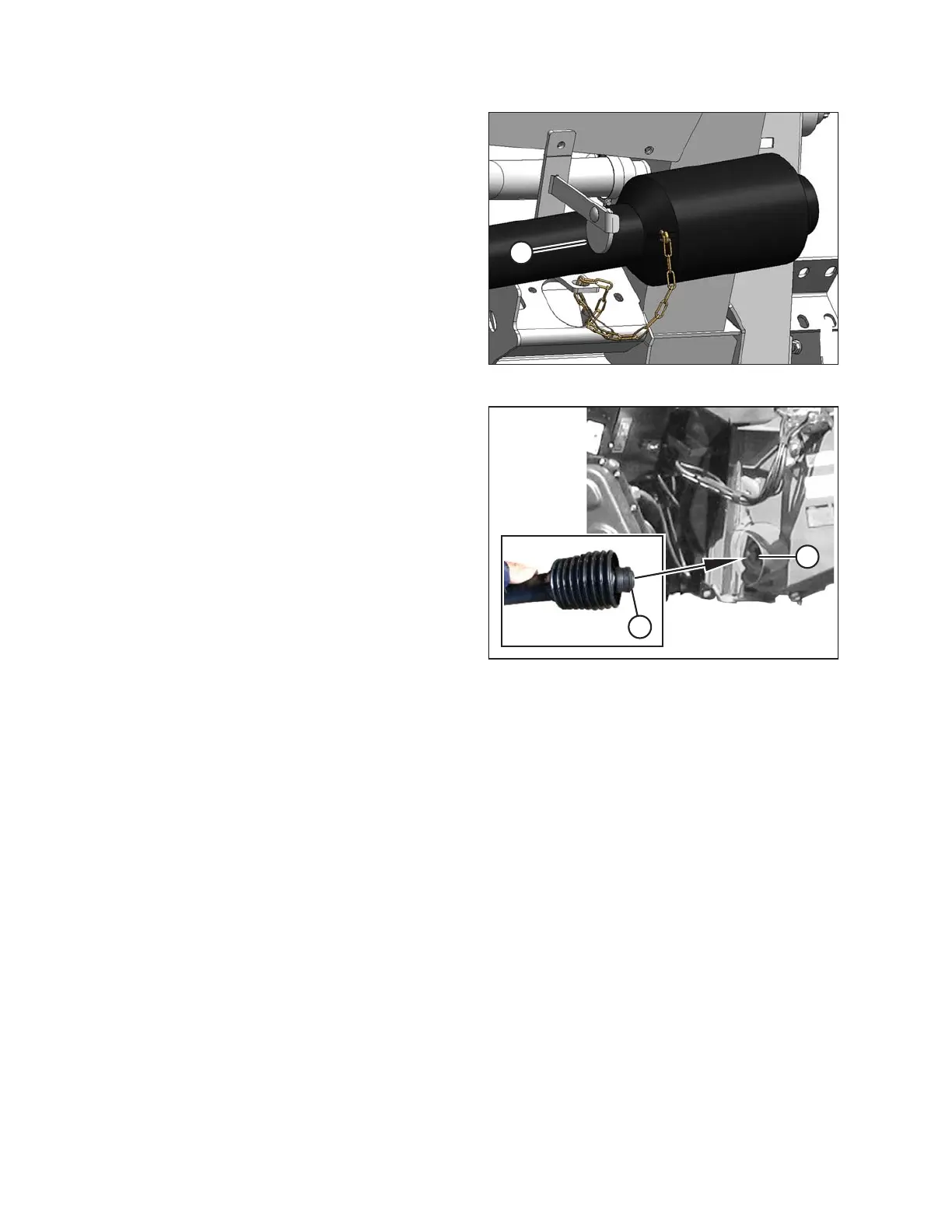

Figure 4.44: Driveline
12. Rotate disc (A) on adapter driveline storage hook, and
remove driveline from hook.
Figure 4.45: Driveline
13. Pull back collar (A) on end of driveline, and push
driveline onto combine output shaft (B) until collar locks.
HEADER ATTACHMENT/DETACHMENT
