214323 314 Revision A

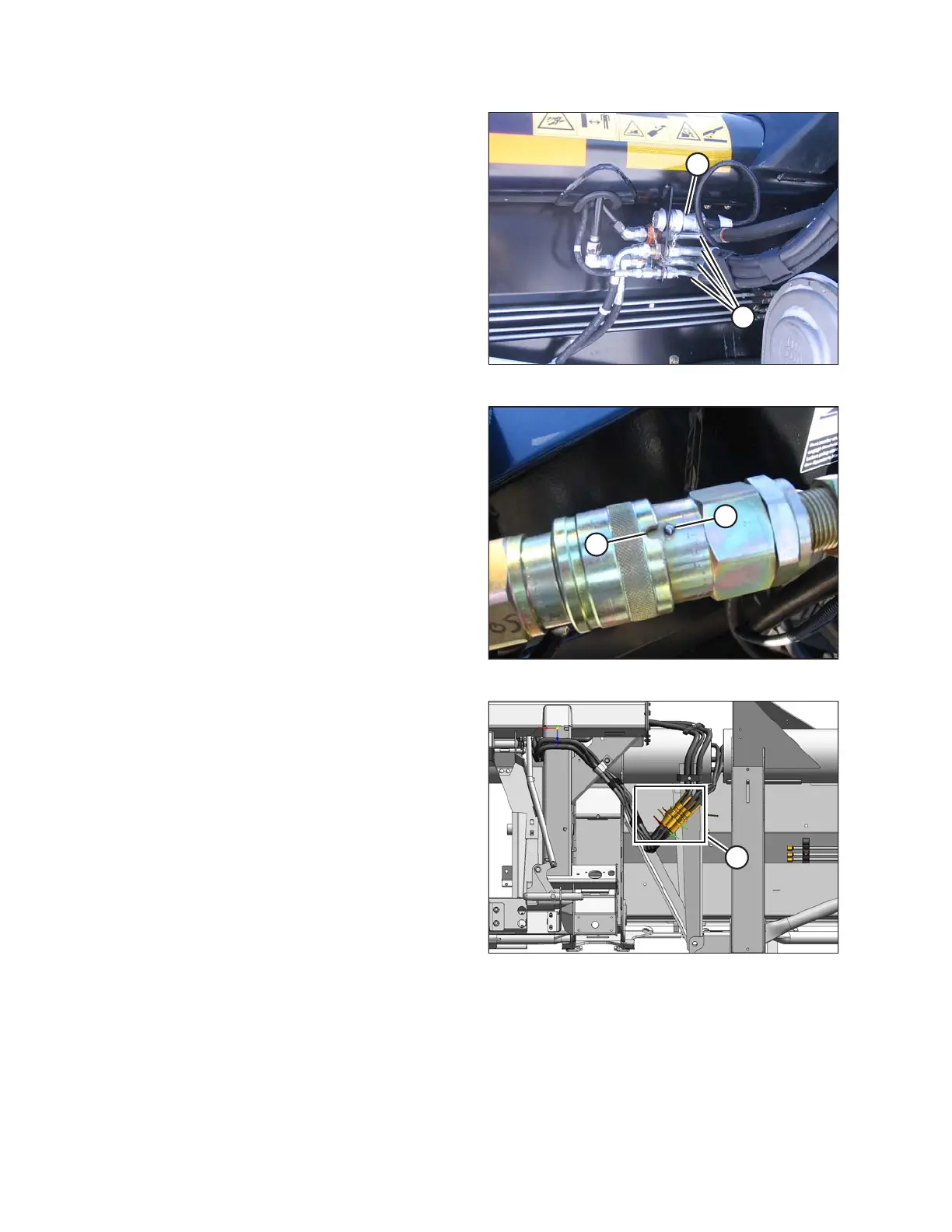

Figure 4.104: Header Connections
25. Disconnect electrical connector (B).
26. Disconnect knife and draper drive hydraulic hoses (A)
at bracket. Cap off ends immediately to avoid loss of oil.
27. Store and secure hoses on adapterfloat module frame.
Figure 4.105: Quick Disconnect Coupling
28. Disconnect the quick disconnects (if installed) as
follows:
a. Line up slot (A) in the collar with pin (B) on the
connector.
b. Push the collar towards the pin, and pull the
connector to disengage.
c. Install plugs or caps on the hose ends (if
equipped).
Figure 4.106: Reel Hydraulics
29. Disconnect reel hydraulics (A). Immediately cap hoses
to prevent oil loss.
HEADER ATTACHMENT/DETACHMENT
