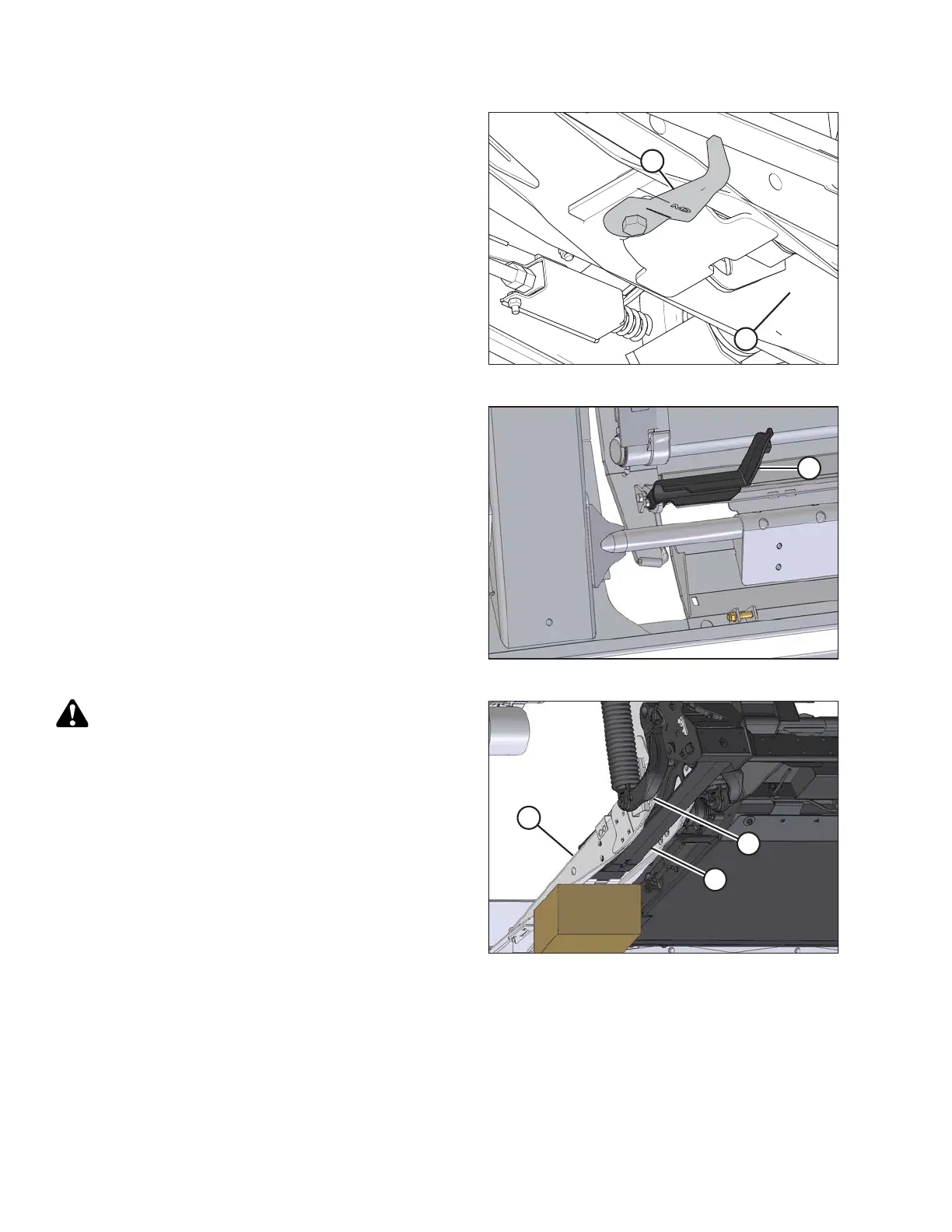

Figure 4.109: Header Underside
2. Ensure the hooks (A) are in the storage position as
shown and do not interfere with the installation of the
adapter arms into the channel (B).
Figure 4.110: Latch
3. Ensure the latches (A) at the front corners of the
adapter are rotated towards the rear of the adapter.
Figure 4.111: Adapter Underside
CAUTION
Be sure all bystanders are clear of machine before
starting engine or engaging any header drives.
4. Start the engine, and lower the combine feeder house
so the adapter arms (A) are aligned with the header
legs (B).
5. Drive slowly forward while maintaining alignment
between the adapter arms (A) and the header legs (B).
6. Keep the adapter arms (A) just under the header
legs (B) to ensure the adapter legs seat properly in the
header linkage supports at location (C).
IMPORTANT:
Keep the hydraulic hoses clear to prevent damaging
then while driving into the header.
7. Drive slowly forward until the adapter arms (A) contact
the stops in the legs (C).
HEADER ATTACHMENT/DETACHMENT
