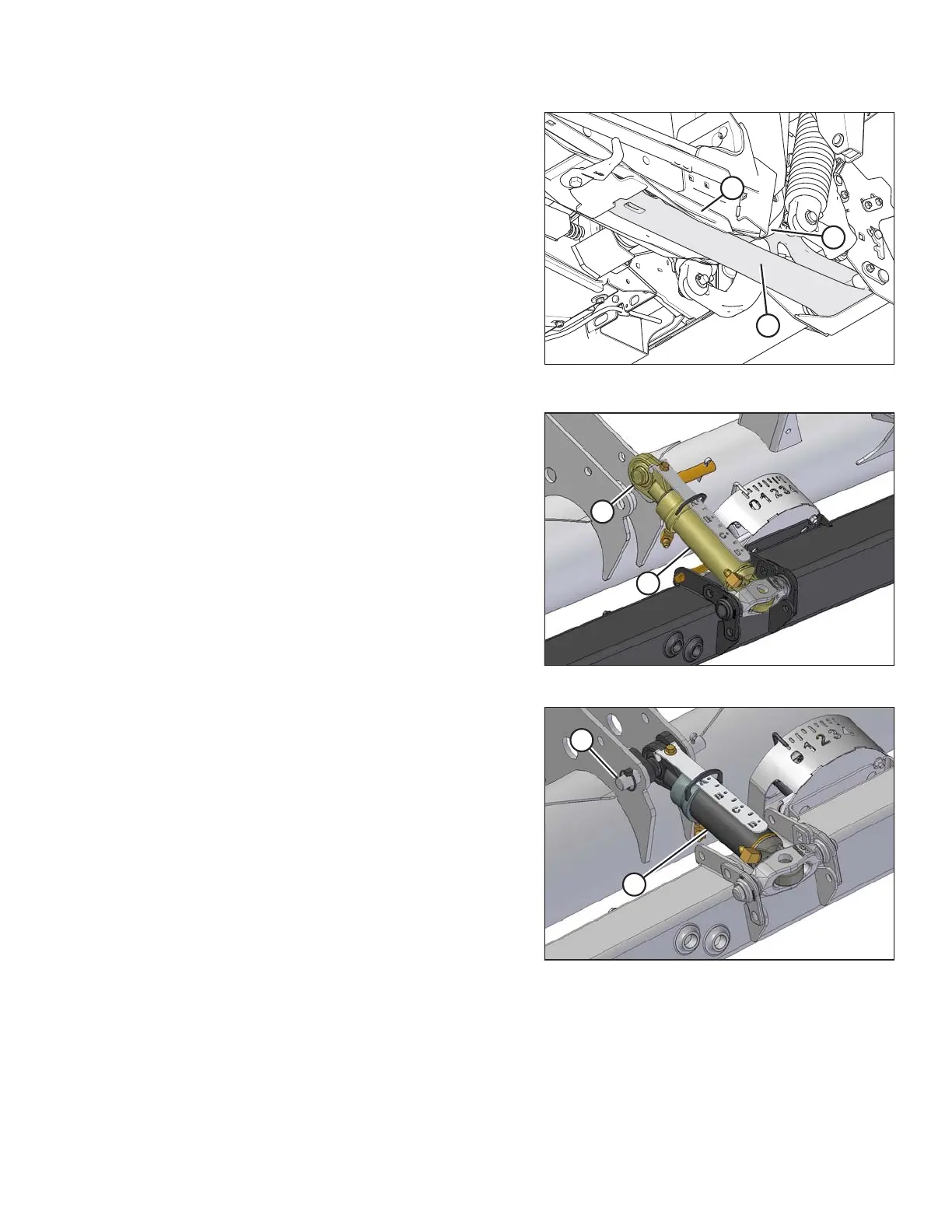

Figure 4.112: Adapter Underside
8. Start engine, and lower combine feeder house so that
adapter arms (B) are aligned with header balance
channels (B).
9. Drive slowly forward, maintaining alignment between
adapter arms (A) and header balance channels (B).
10. Keep adapter arms (A) just under the balance
channels (B) to ensure adapter legs seat properly in the
header linkage supports at (C).
IMPORTANT:
Keep hydraulic hoses clear to prevent damage when
driving into header.
11. Continue forward until adapter arms (A) contact stops in
balance channels (B).
Figure 4.113: Center-Link
12. Adjust the length of the center-link (A) using the header
angle hydraulics to approximately align the center-link
eye (B) with the hole in the header bracket.
13. Shut down the engine and remove the key from the
ignition.
Figure 4.114: Center-Link
14. Connect the center-link as follows:
a. Pull pin (B) part way out of the bracket, and remove
the prop from under the center-link (A).
b. Install the pin (B) through the center-link (A)
bracket, and secure with lynch pin.
