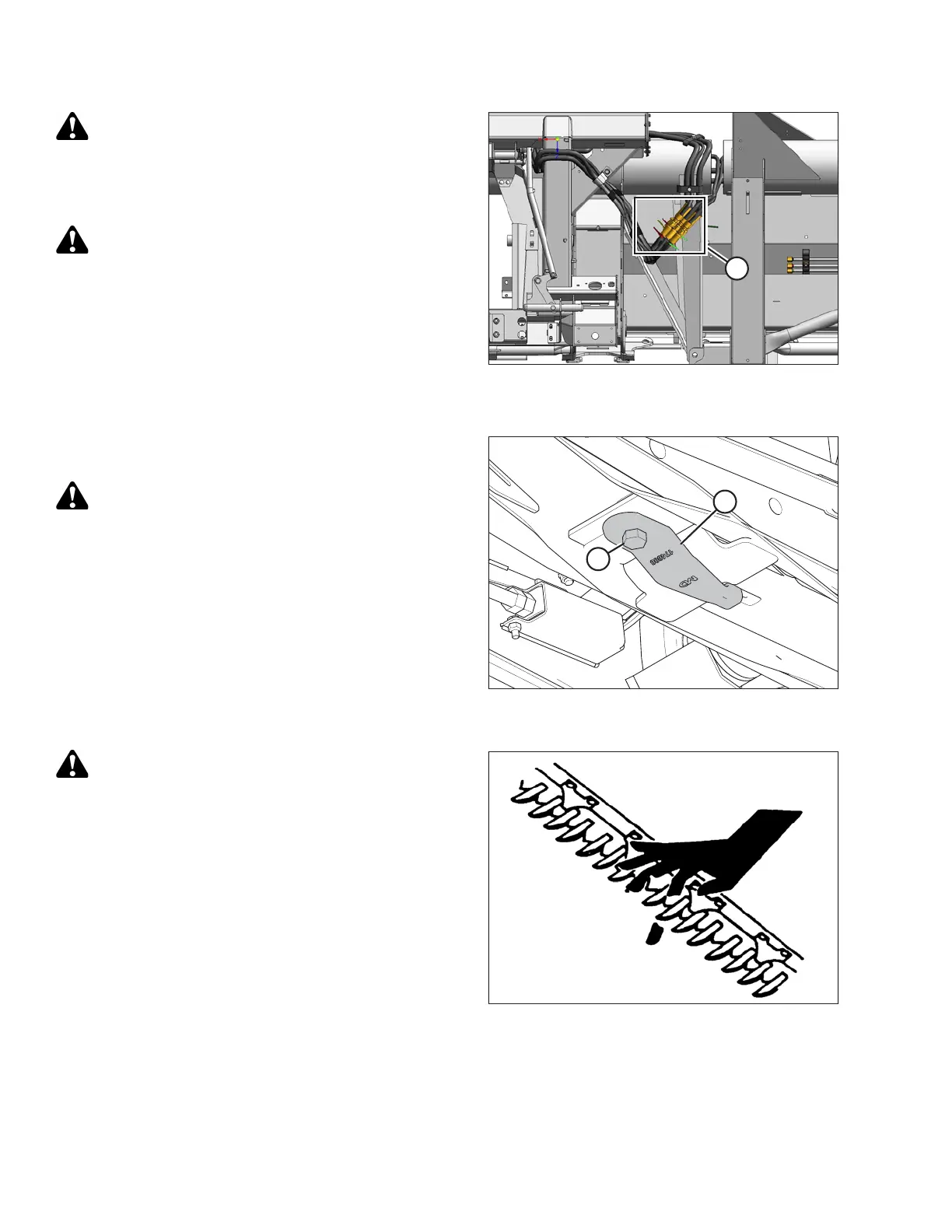

Figure 4.115: Reel Hydraulics
CAUTION
Always connect center-link before fully raising header.
15. Match the colored cable ties and connect the reel
hydraulics (A) at the right end of the adapter.
CAUTION
Be sure all bystanders are clear of machine before
starting engine or engaging any header drives.
16. Start the engine and slowly raise the adapter while
making sure the adapter legs engage the header legs.
17. Raise the header to its full height, stop the engine, and
remove the key from the ignition.
18. Engage the header safety props on the combine.
1004592
A
B
Figure 4.116: Adapter Underside
19. Loosen nut and bolt (A), and reposition hook (B) as
shown to engage adapter arm. Tighten bolt and nut (A).
CAUTION
Be sure all bystanders are clear of machine before
starting engine or engaging any header drives.
20. Remove the lift cylinder locks, start the engine, and
lower the header to the ground. Adjust the header angle
to the shallowest setting (shortest center-link).
21. Raise the reel to its full height.
22. Shut down the engine and remove the key from the
ignition.
23. Engage the reel safety props.
1001215
Figure 4.117: Cutterbar Hazard
WARNING
Keep hands clear of the area between guards and knife
at all times.
