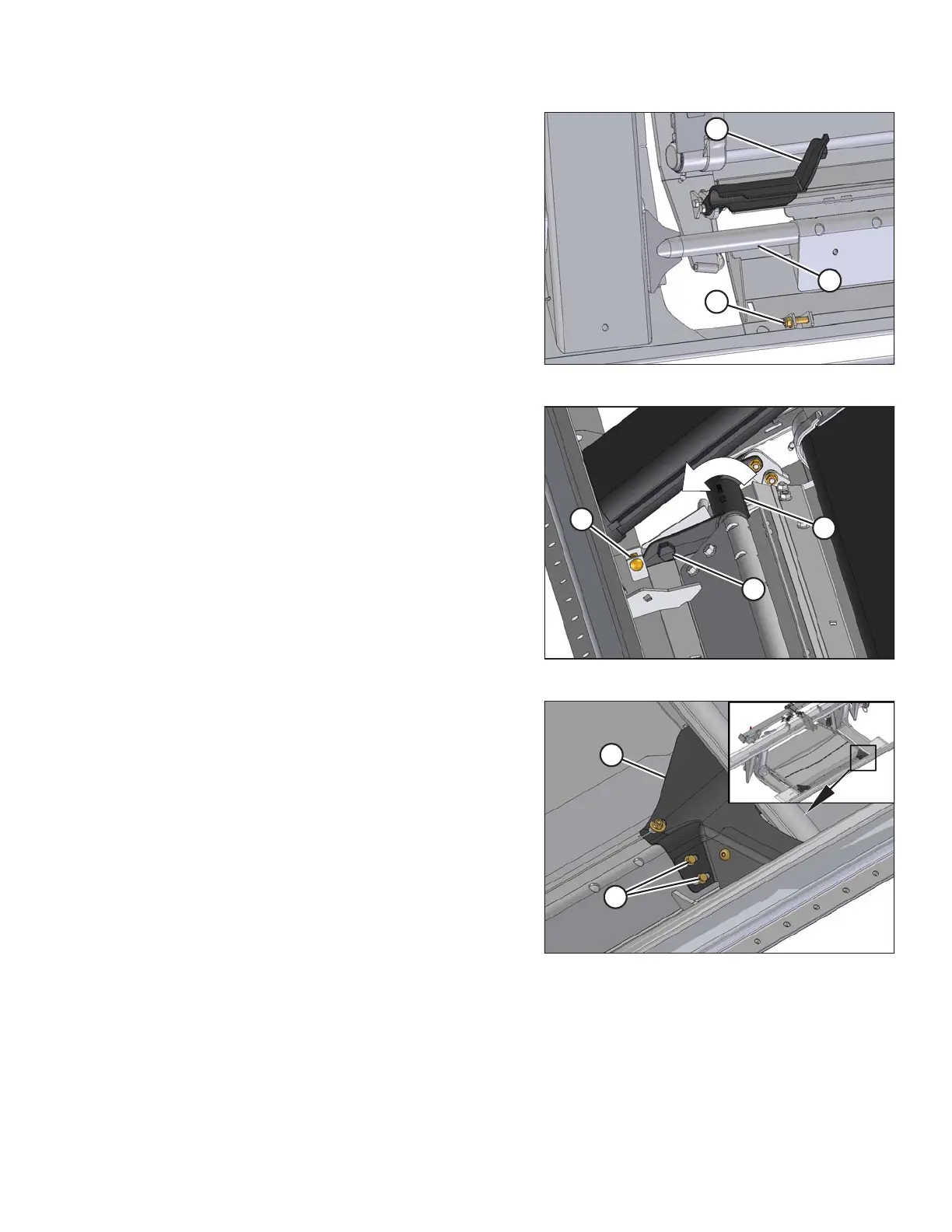

Figure 4.118: Adapter Latch
24. Remove bolt (A) from both sides of the opening to allow
the attachment of the adapter deck.
25. Rotate the latch (B) forward and down to engage the
transition pan tube (C).
Figure 4.119: CA25 Latch
26. Use a 24 mm (15/16 in.) wrench on hex bolt (B) to
rotate latch (A) downwards and slightly raise the feed
deck. Install bolt (C) to lock the latch position.
27. Repeat for the opposite side of the feed draper deck.
Figure 4.120: CA25 Fillers
28. Install fillers (A) at each front corner of the feed deck
with two 3/8 in. x 0.75 long hex head bolts (B) at each
location.
