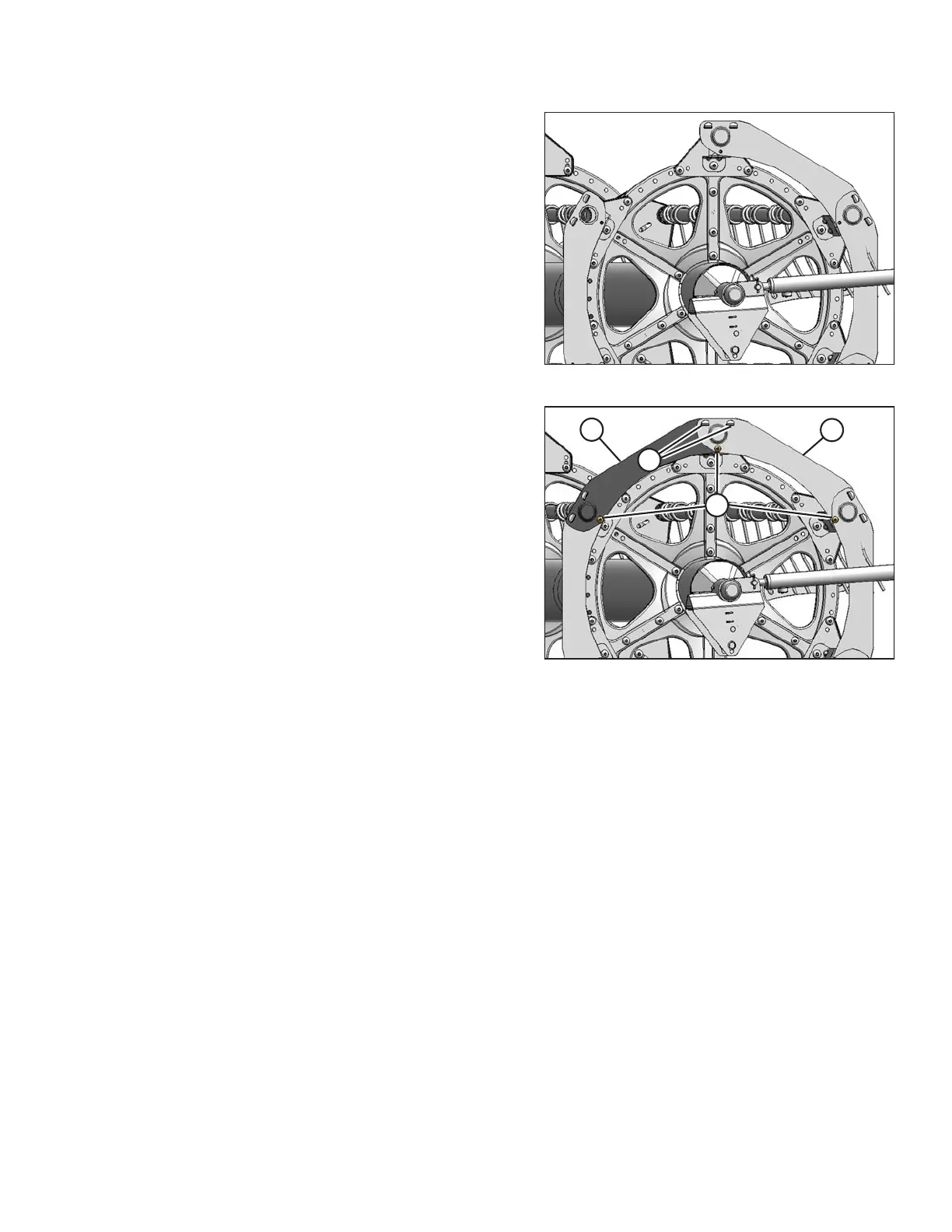

Figure 5.276: Reel Endshields
5. Remove the reel endshield from the supports.
1009537
A
C
D
B
Figure 5.277: Reel Endshields
6. Remove reel endshield (A) from support (B).
7. Install new reel endshield (C) onto support (B).
8. Reattach reel endshield (A) onto support (B) ensuring it
is installed on top of the reel endshield (C).
9. Reinstall bolts (D).
10. Tighten all hardware.
