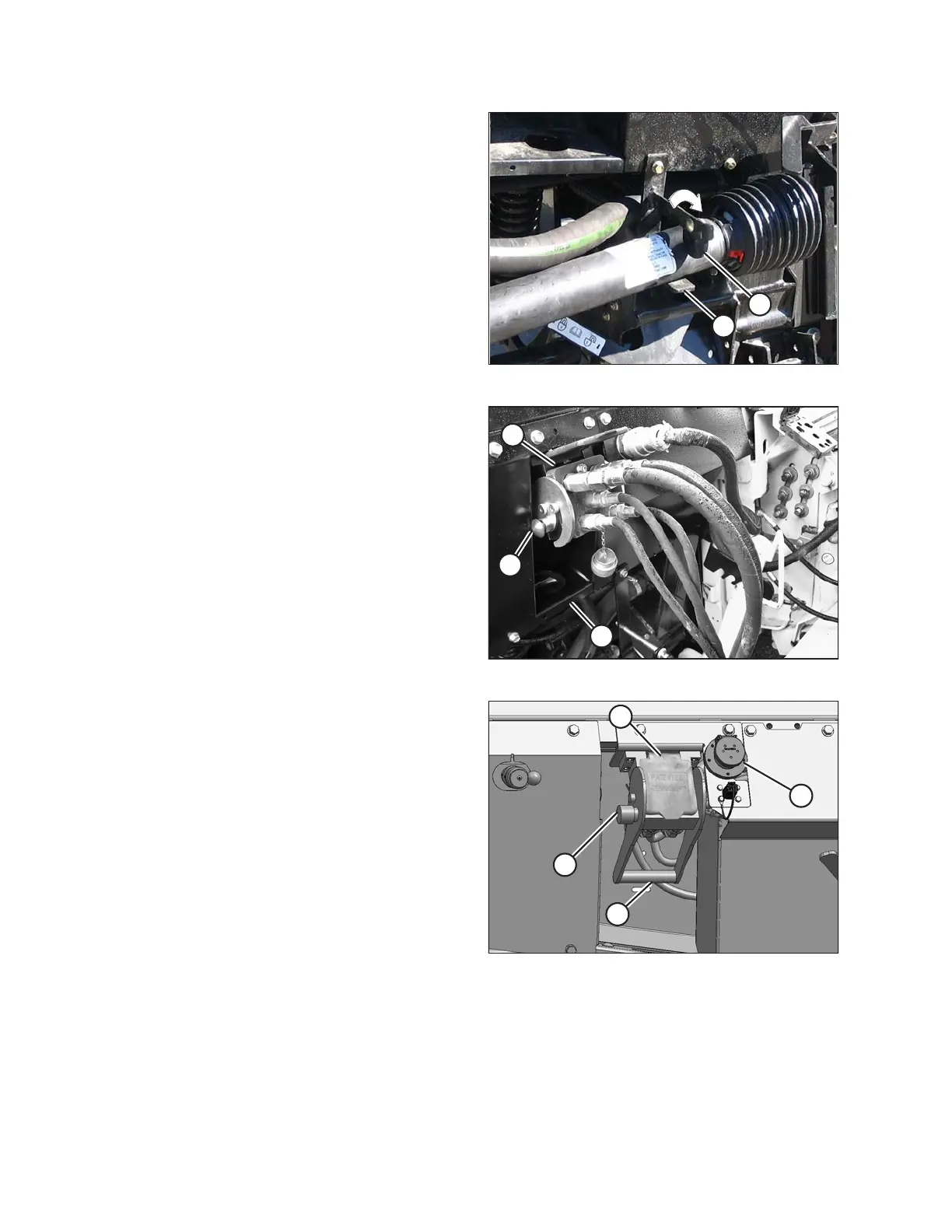

Figure 4.85: Driveline
5. Slide the driveline into hook (A) until disc (B) drops
securing the driveline in place.
1001503
C
B
A
Figure 4.86: Adapter Connections
6. Push in lock button (B), and pull handle (C) to release
multicoupler (A).
1001506
H
F
G
M
Figure 4.87: Adapter Receptacles
7. Push handle (A) to the closed position until lock button
(B) snaps out. Close cover (C).
