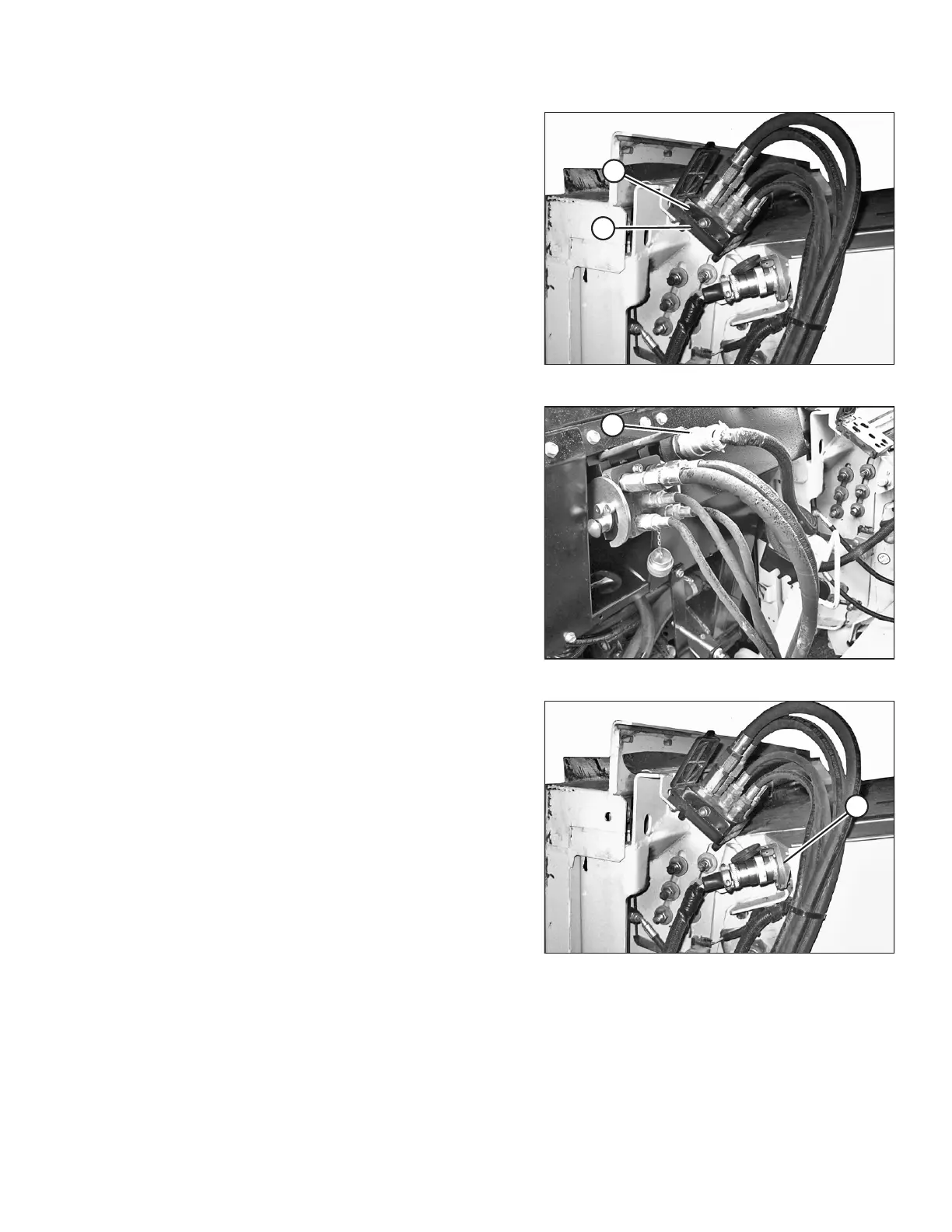

Figure 4.88: Combine Coupler
8. Position hydraulic quick coupler (A) onto storage plate
(B) on the combine.
Figure 4.89: Adapter Connections
9. Remove electrical connector (A) from the adapter.
Figure 4.90: Combine Couplers
10. Connect the electrical connector to the combine at
location (A).
HEADER ATTACHMENT/DETACHMENT
