MacDon FD75 - Page 106

214323 88 Revision A
Reposition the left reel arm cylinder as follows:
NOTE:
Reel components not shown in illustration for improved clarity.
1001761
C
D
B
A
D

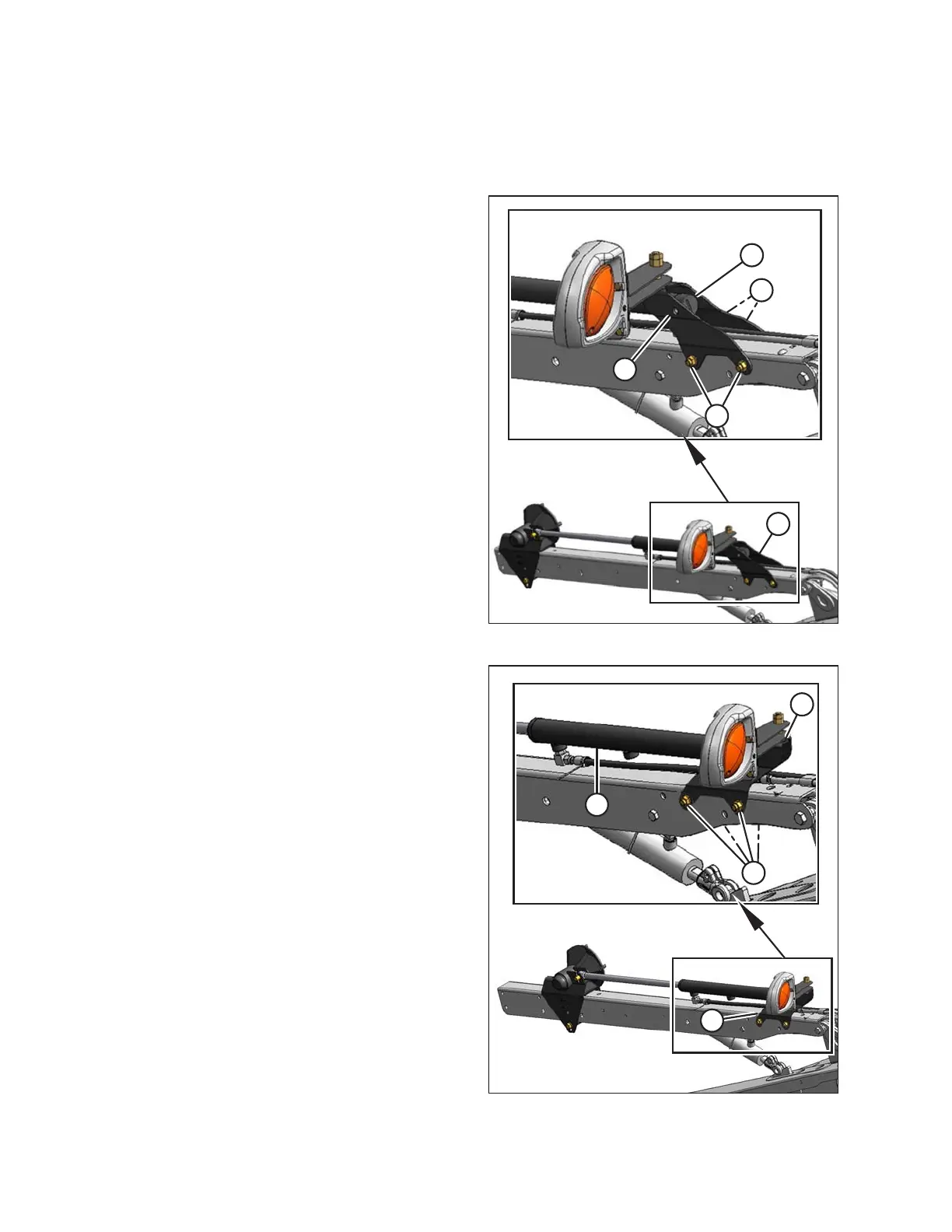

Figure 3.96: Forward Position
9. Remove pin (A) securing cylinder (B) to bracket/light
assembly (C).
10. Remove bolts (D) securing bracket/light assembly (C)
to the reel arm, and remove the bracket/light assembly.
11. If necessary, remove the cable tie securing the harness
to the bracket/light assembly (C) or reel arm.
12. Swivel the light to the working position as shown.
1001762
A
B
C
D
Figure 3.97: Rearward Position
13. Reposition bracket/light assembly (C) on the reel arm
as shown, and secure with four bolts (D). Tighten bolts.
14. Push the reel back and attach cylinder (B) to
bracket/light assembly (C) with pin (A). Secure pin with
cotter pin.
15. Secure the light harness to bracket/light assembly (C)
using a cable tie.
16. Check the reel clearance to the backsheet, upper cross
auger (if installed), and reel braces.
17. Adjust the reel tine pitch if necessary. Refer to 3.7.11
Reel Tine Pitch, page 91.
OPERATION
