214323 87 Revision A
Reposition right arm cylinder as follows:
NOTE:
Reel components not shown in illustration for improved clarity.

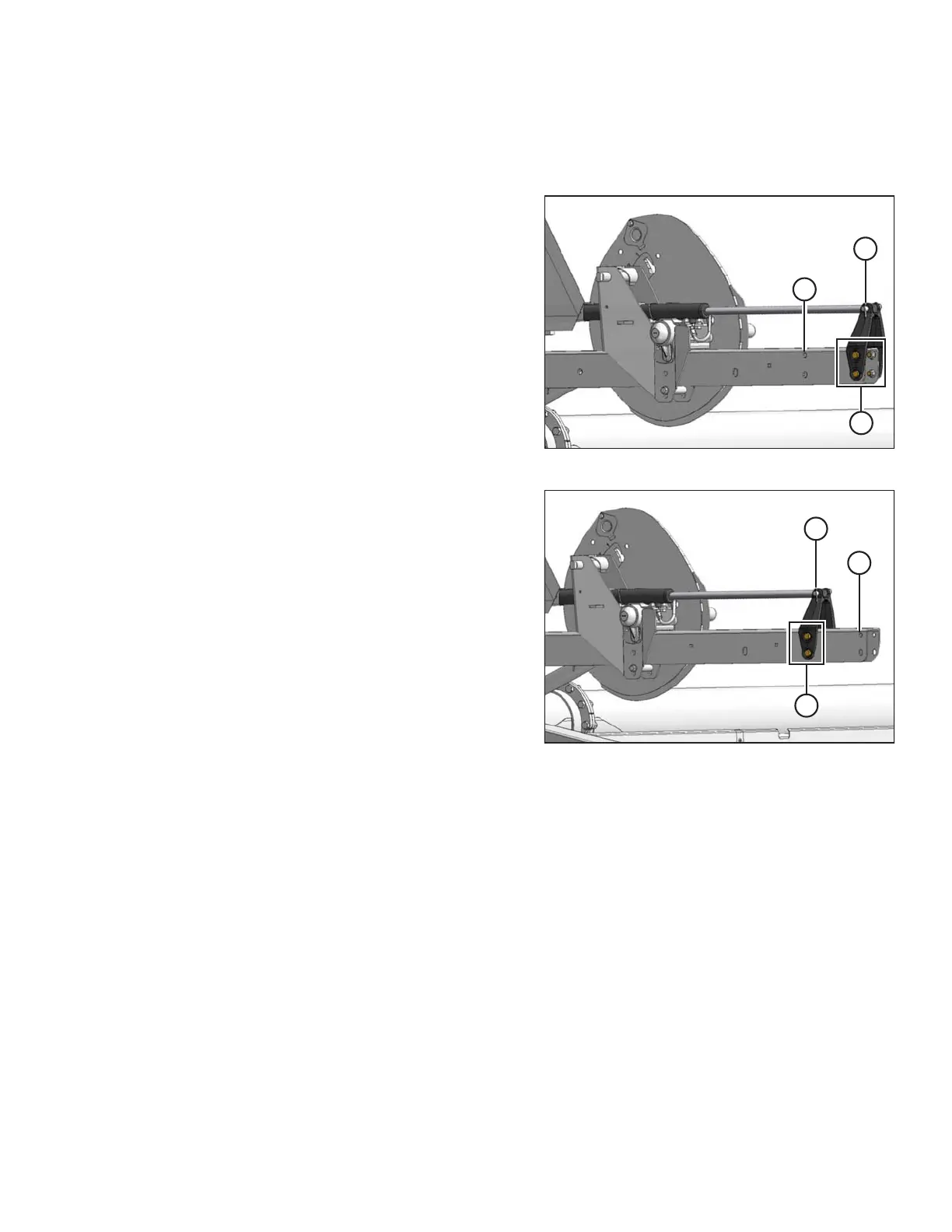

Figure 3.94: Forward Position
Figure 3.95: Rearward Position
6. Remove four bolts (A) securing cylinder bracket (B) to
the reel arm.
7. Push reel back until bracket (B) lines up with the aft set
of holes (C).
8. Reinstall the four bolts (A) to secure bracket to reel arm
at new position.
OPERATION
