214323 86 Revision A
Reposition the center arm cylinder as follows:
NOTE:
Reel components not shown in illustration for improved clarity.
NOTE:
To move a split reel into canola position, the Short Brace Kit for Center Reel Arm (B5605) is required.

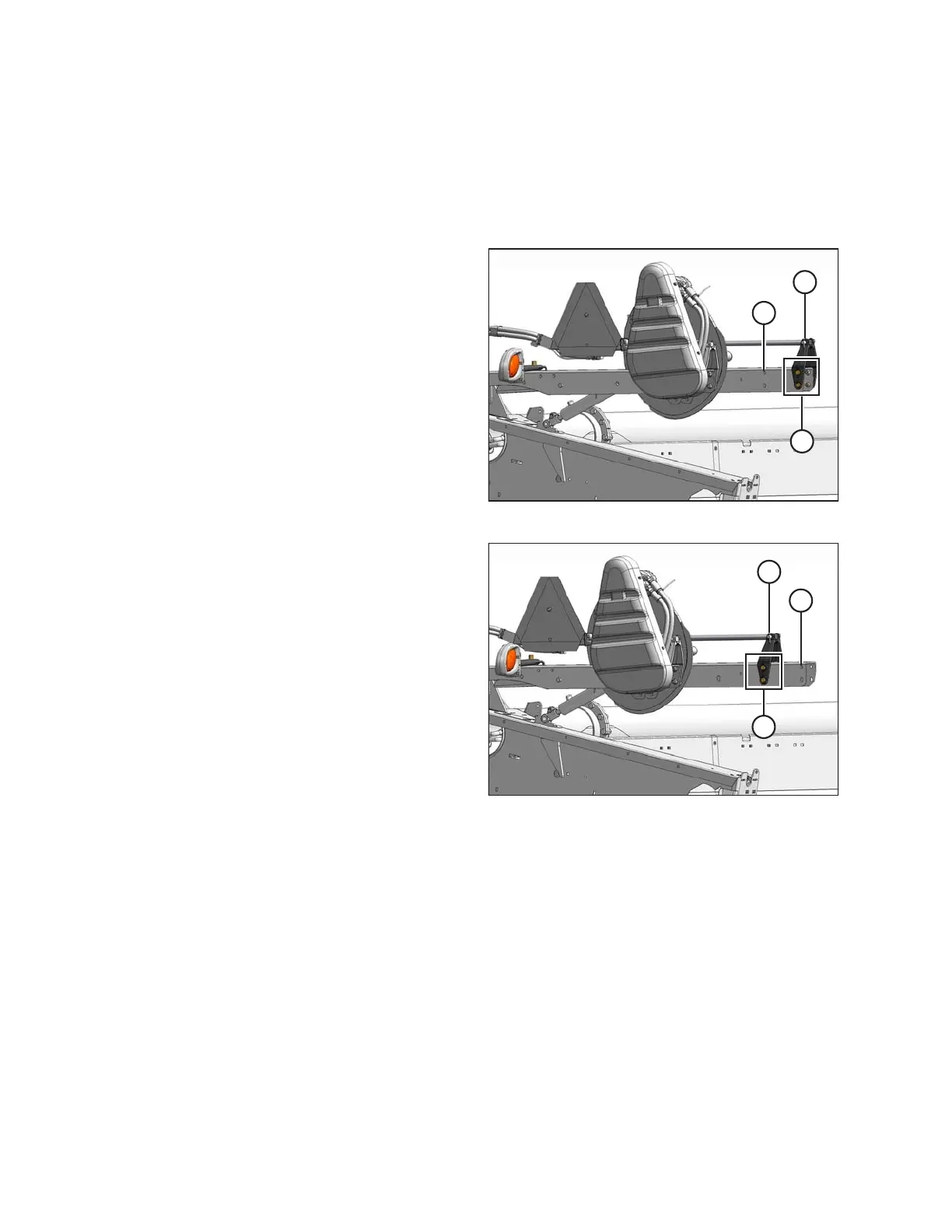

Figure 3.92: Right Arm – Forward Position
Figure 3.93: Right Arm – Rearward Position
1. Position reel fully aft with support arms horizontal.
2. Stop engine and remove key.
3. Remove four bolts (A) securing cylinder bracket (B) to
reel arm.
4. Push/pull reel until bracket (B) lines up with the fore/aft
set of holes (C).
5. Reinstall four bolts (A) to secure bracket (B) to reel arm
at new position.
OPERATION
