MacDon FD75 - Page 242

214323 224 Revision A
1003672
A

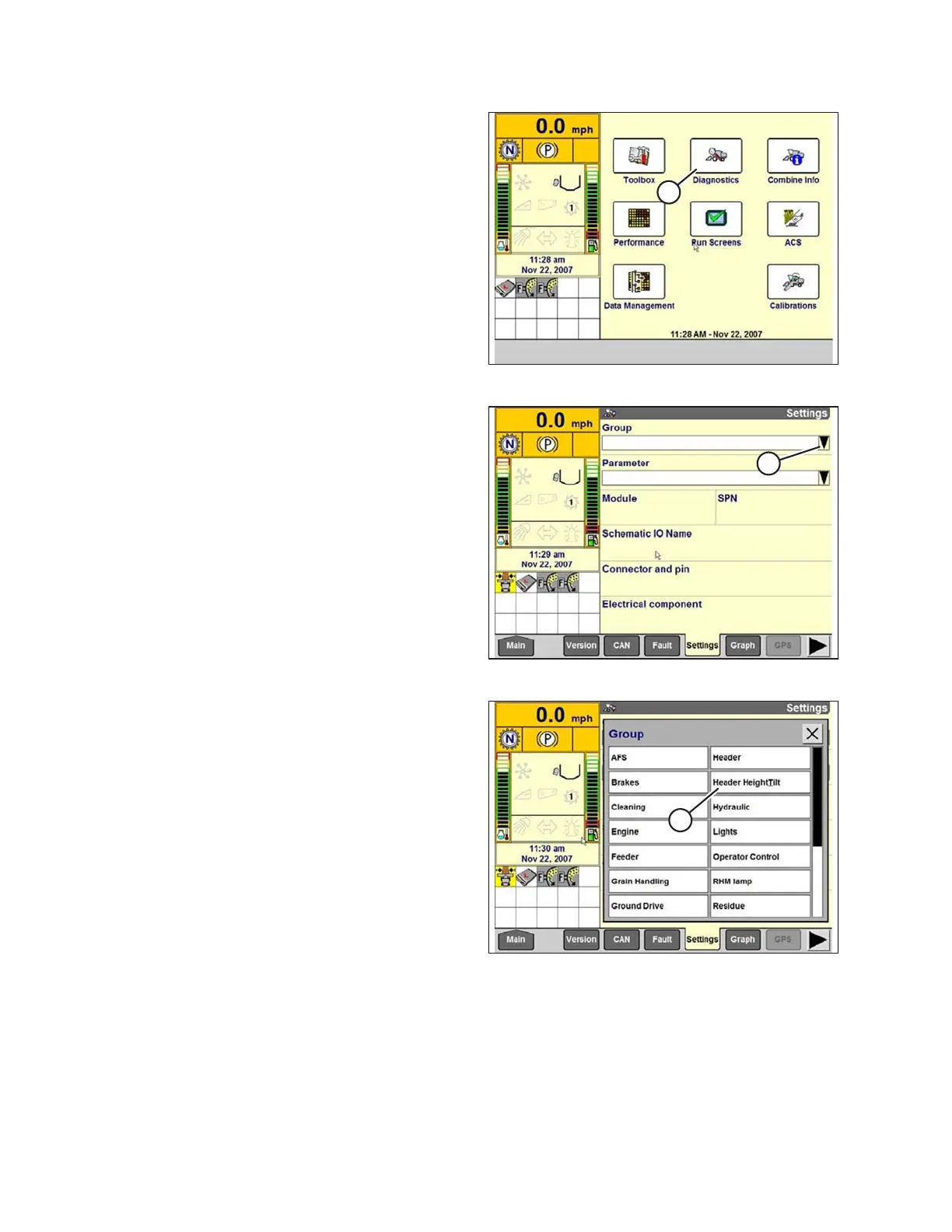

Figure 3.390: New Holland Combine Display
5. Select DIAGNOSTICS (A) on main page. The
DIAGNOSTICS page displays.
6. Select SETTINGS. The SETTINGS page displays.
1003673
A
Figure 3.391: New Holland Combine Display
7. Select GROUP drop-down arrow (A). The GROUP
dialog box displays.
1003674
A
Figure 3.392: New Holland Combine Display
8. Select HEADER HEIGHT/TILT (A). The PARAMETER
page displays.
OPERATION
