214323 271 Revision A

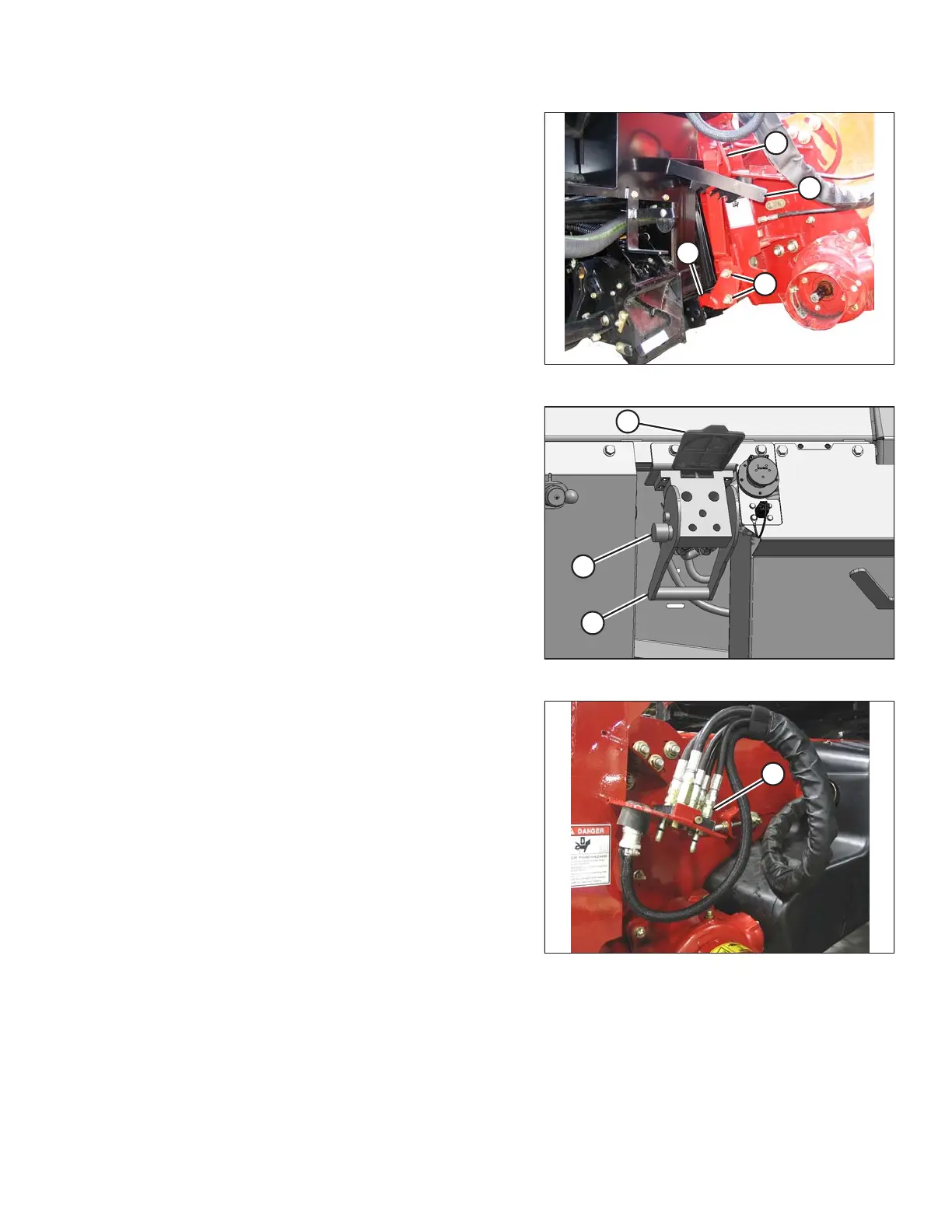

Figure 4.3: Combine and Adapter
5. On left of feeder house, lift lever (A) on adapter and
push handle (B) on combine to engage locks (C) on
both sides of feeder house.
6. Push down on lever (A) so slot in lever engages handle
and locks handle in place.
7. If lock (C) does not fully engage pin on adapter, loosen
bolts (D) and adjust lock. Retighten bolts.
Figure 4.4: Adapter Receptacle
8. Open receptacle cover (A) on adapter.
9. Press lock button (B) and pull handle (C) to fully
open position.
10. Clean receptacle mating surfaces.
Figure 4.5: Combine Connectors
11. Remove hydraulic quick coupler (A) from combine and
clean mating surfaces.
HEADER ATTACHMENT/DETACHMENT
