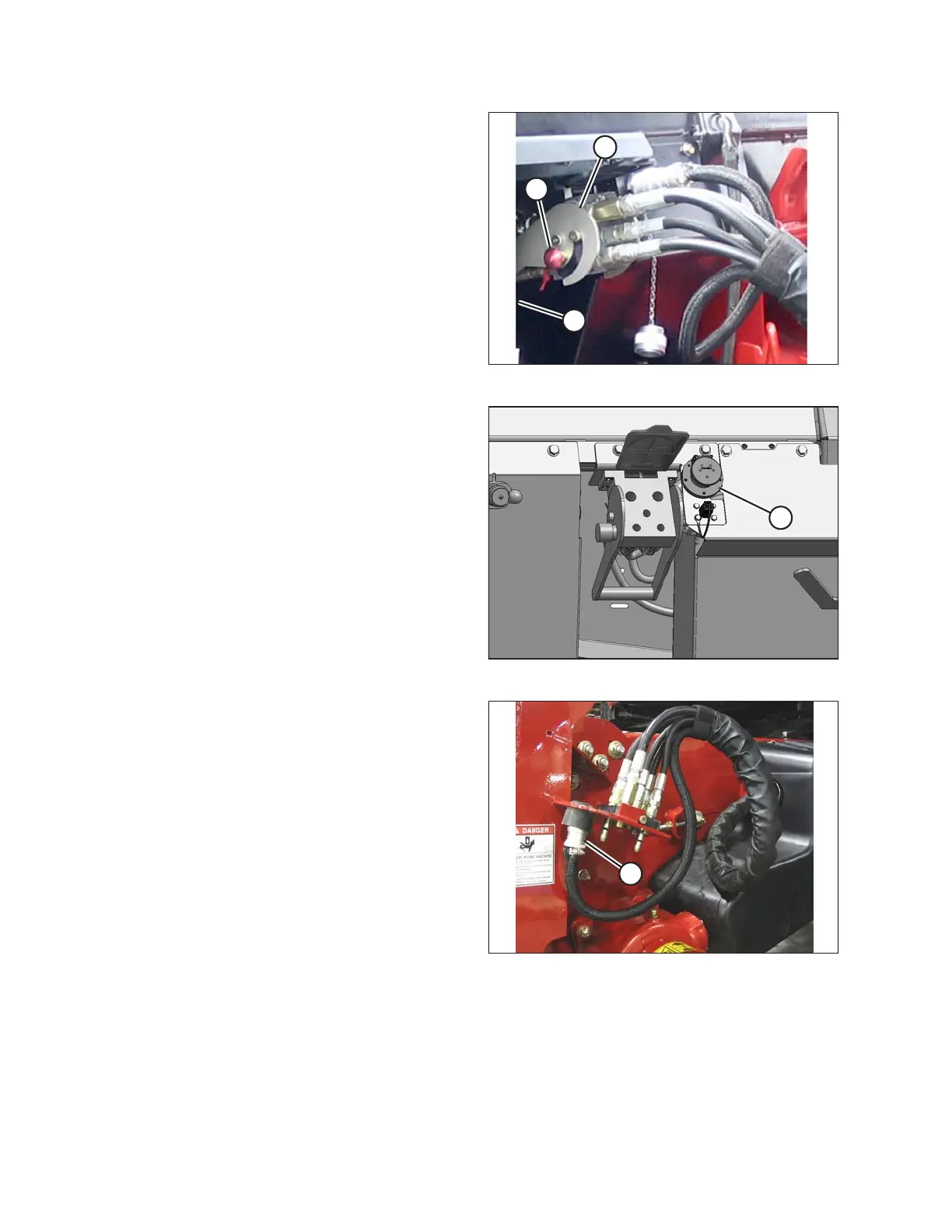

Figure 4.6: Hydraulic Connection
12. Position coupler onto adapter receptacle (A) and push
handle (B) (not shown) to engage multicoupler pins into
receptacle.
13. Push handle (B) to closed position until lock button (C)
snaps out.
Figure 4.7: Electrical Receptacle
14. Remove cover from electrical receptacle (A). Ensure
receptacle is clean and has no signs of damage.
Figure 4.8: Combine Connectors
15. Remove electrical connector (A) from storage cup on
combine, and route it to adapter receptacle.
HEADER ATTACHMENT/DETACHMENT
