214323 273 Revision A

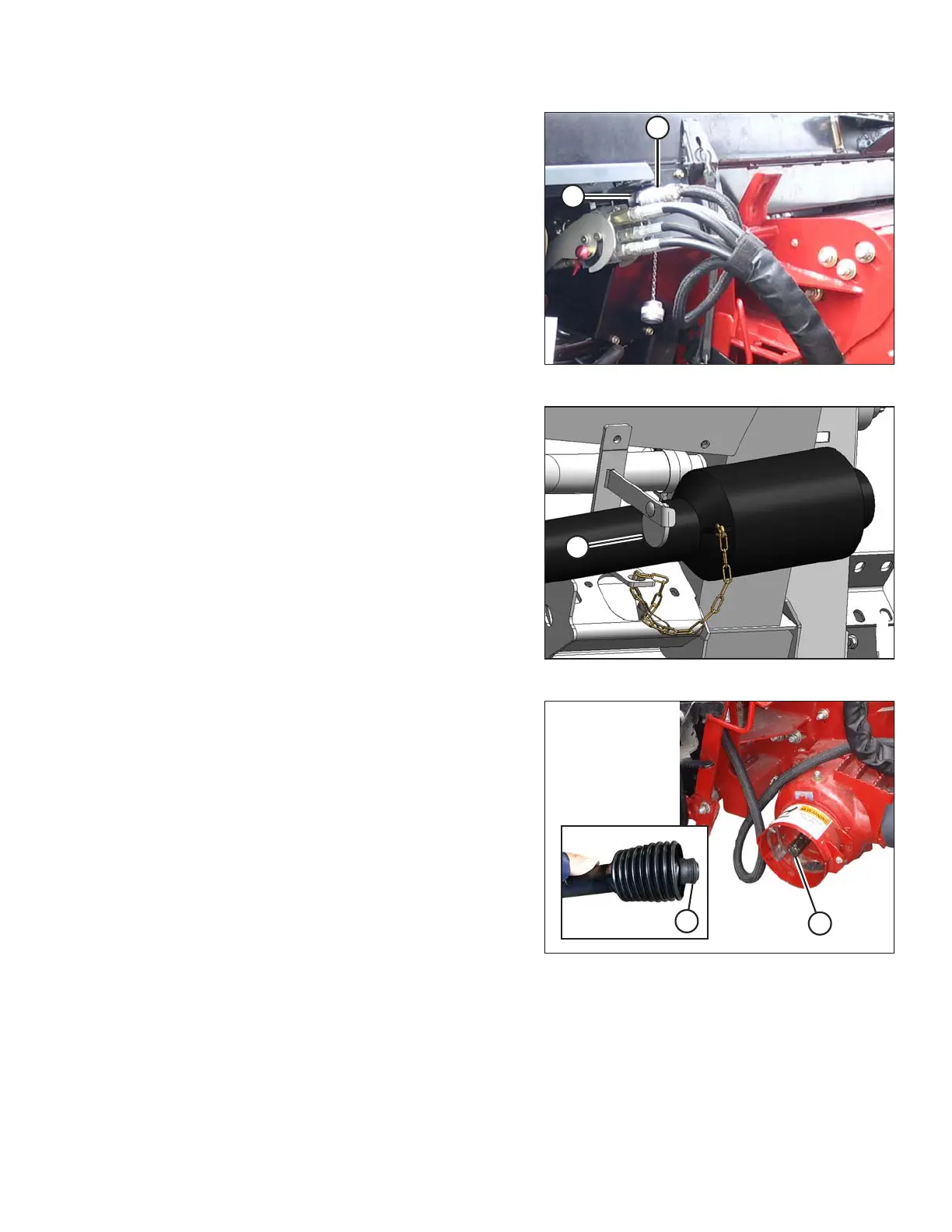

Figure 4.9: Electrical Connection
16. Align lugs on connector (A) with slots in receptacle (B),
push connector onto receptacle, and turn collar on
connector to lock it in place.
Figure 4.10: Driveline Storage Hook
17. Rotate disc (A) on adapter driveline storage hook, and
remove driveline from hook.
Figure 4.11: Combine Output Shaft
18. Pull back collar (A) on end of driveline and push
driveline onto combine output shaft (B) until collar locks.
HEADER ATTACHMENT/DETACHMENT
