MacDon FD75 - Page 130

214323 112 Revision A
1003676
A

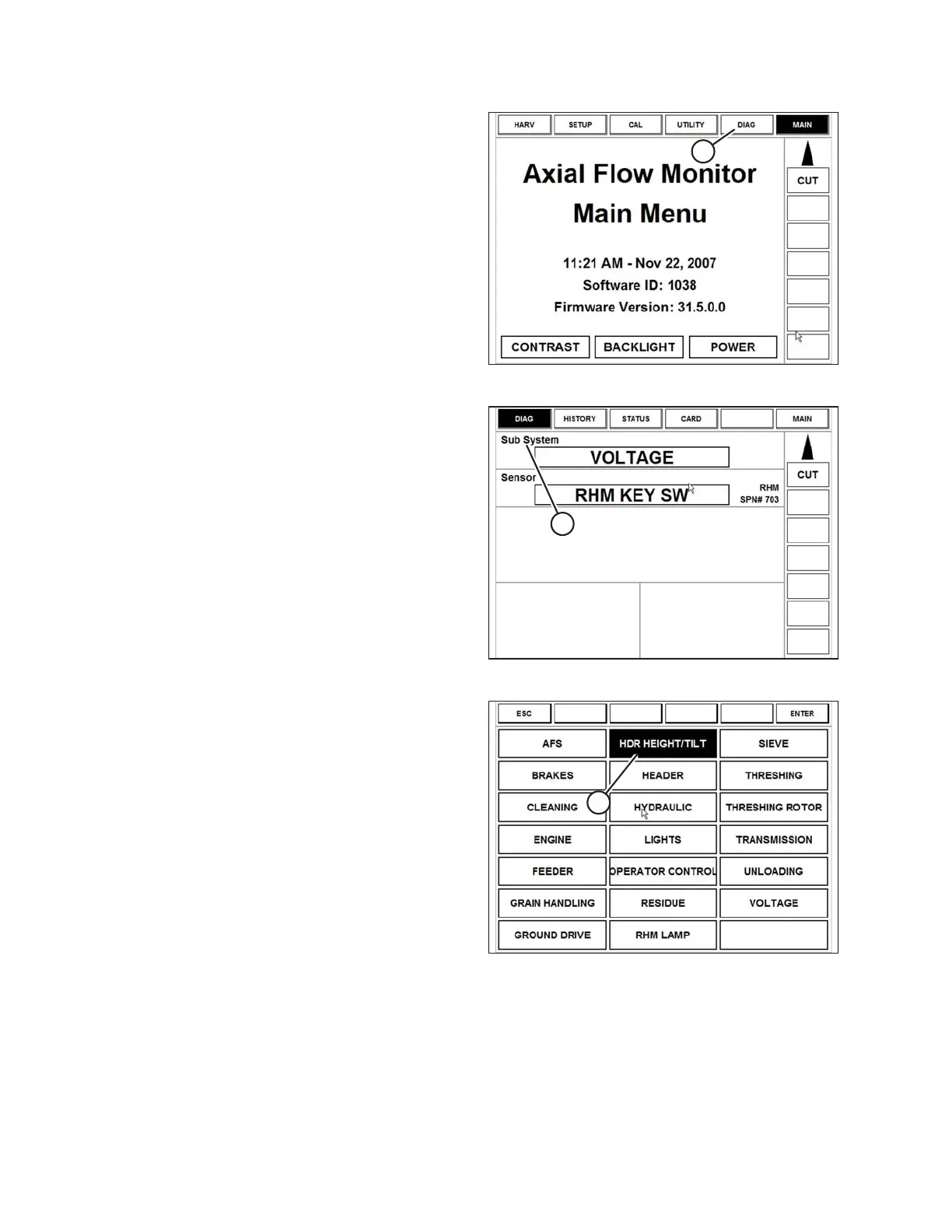

Figure 3.143: Case 8010 Combine Display
5. Select DIAG (A) on Universal display MAIN page. The
DIAG page displays.
1003677
A
Figure 3.144: Case 8010 Combine Display
6. Select SUB SYSTEM (A). The SUB SYSTEM page
displays.
1003678
A
Figure 3.145: Case 8010 Combine Display
7. Select HDR HEIGHT/TILT (A). The SENSOR page
displays.
OPERATION
