214323 173 Revision A
1003464
A
B

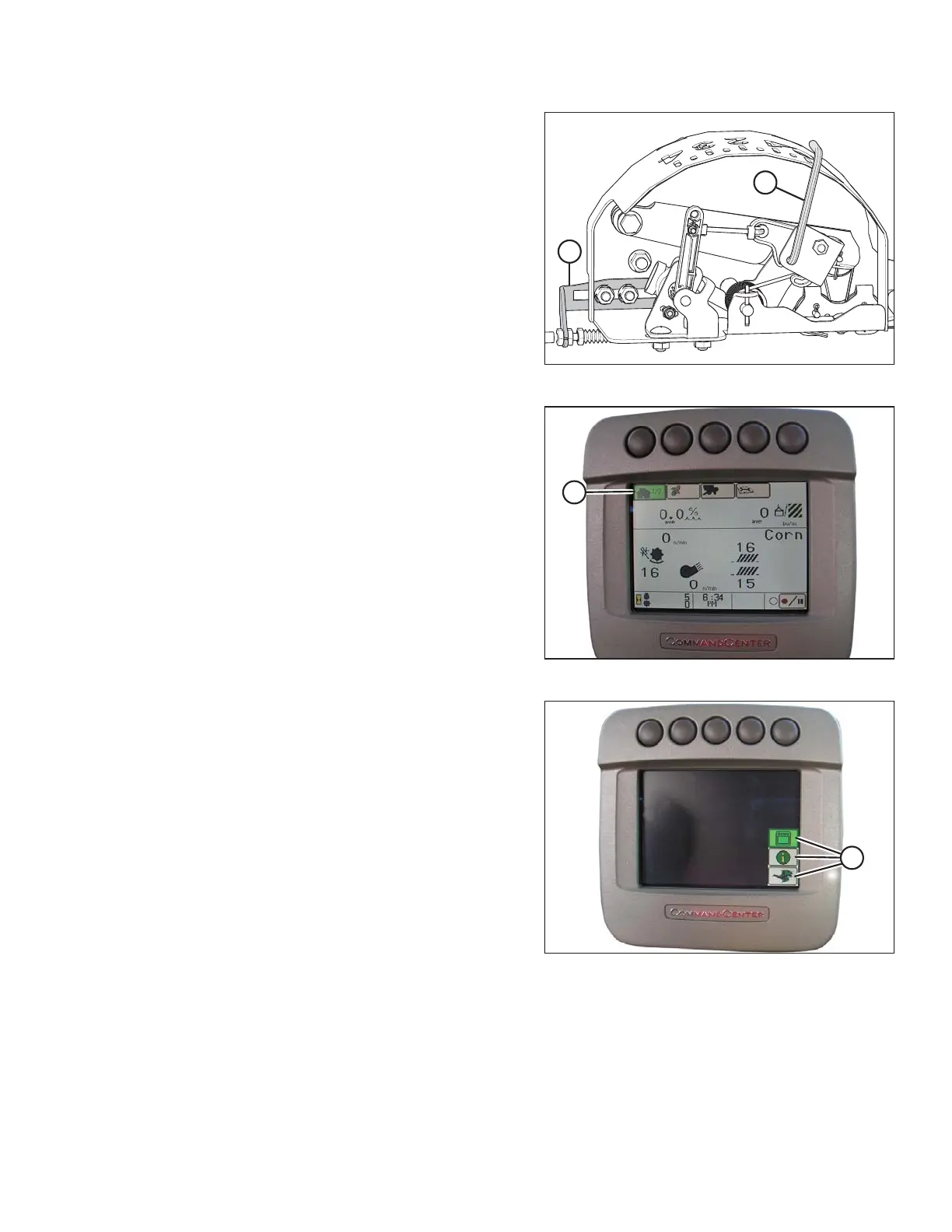

Figure 3.270: Float Indicator Box
3. Adjust cable take-up bracket (B) (if necessary) until
pointer (A) on float indicator is on 0.
1003568
A
Figure 3.271: John Deere Combine Display
4. Press HOME PAGE button (A) on main page of
combine display.
1003569
A
Figure 3.272: John Deere Combine Display
5. Ensure three icons (A) depicted in illustration at right
appear on combine display.
OPERATION
