MacDon FD75 - Page 265

214323 247 Revision A
1001748
A

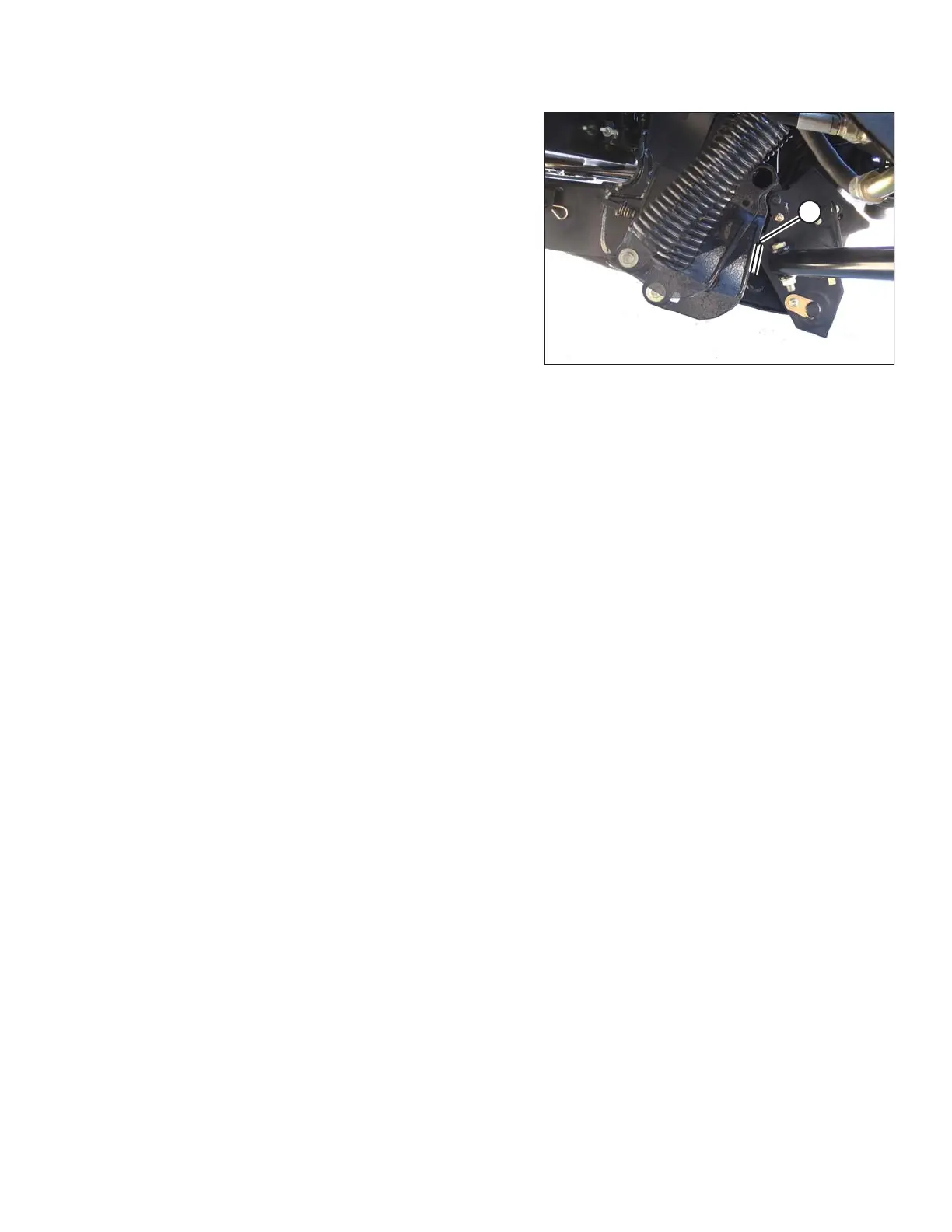

Figure 3.443: Bell Crank
NOTE:
Ensure a minimum clearance of 2–3 mm (1/8 in.) (A)
between the frame and the back of the bell crank lever.
NOTE:
Check the float after levelling header. Refer to Checking
and Adjusting Header Float, page 59.
OPERATION
