Every 500 Hours
Use high temperature extreme pressure (EP2) performance with 1% max molybdenum disulphide (NLGI Grade 2)
lithium base unless otherwise specified.

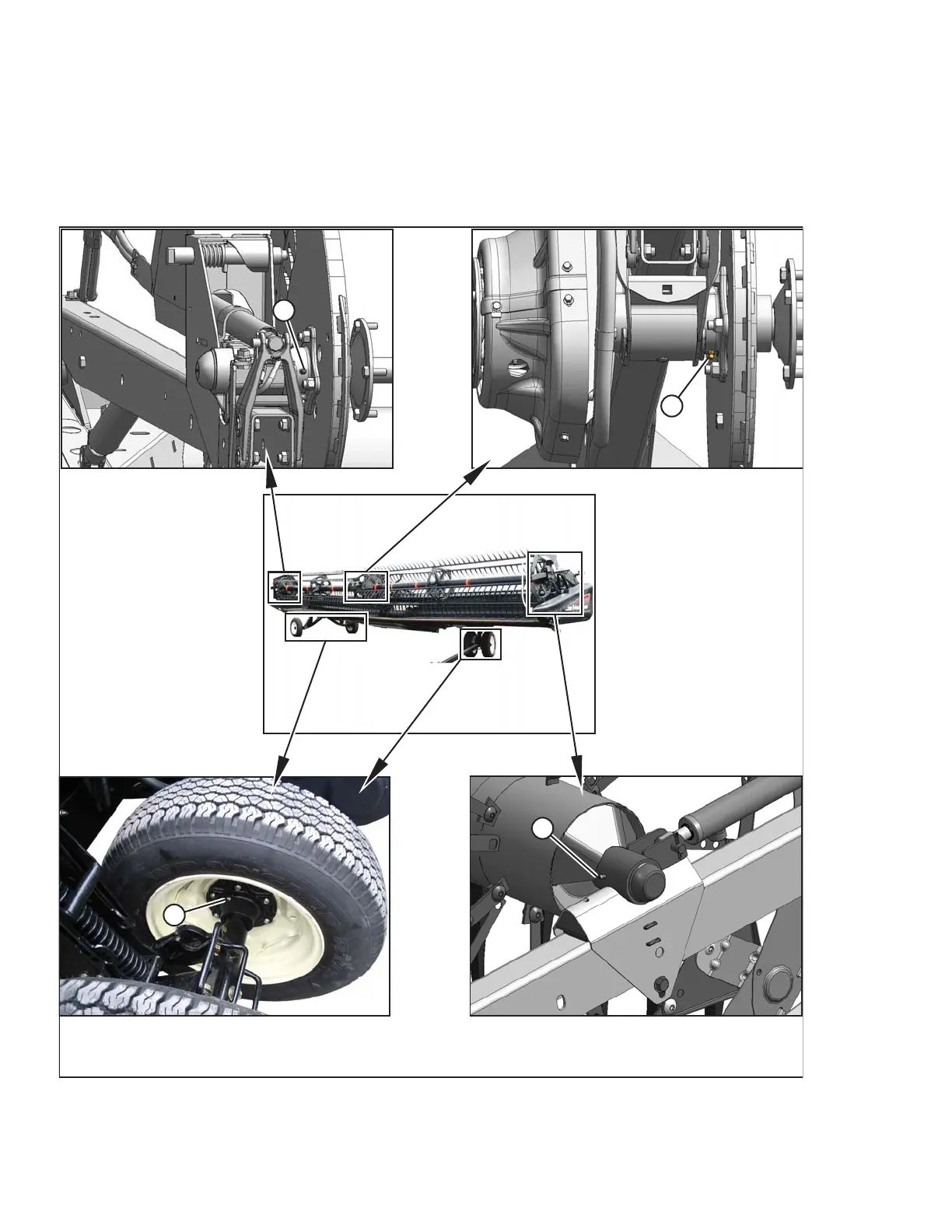

Figure 5.12: Every 500 Hours
1004820
1004779
1004778
1004814
1004781
1004782
D
C
A
B
A - Reel Right Bearing (One Place) B - Reel Center Bearing (One Place)
C - Wheel Bearings (Four Places) D - Reel Left Bearing (One Place)
