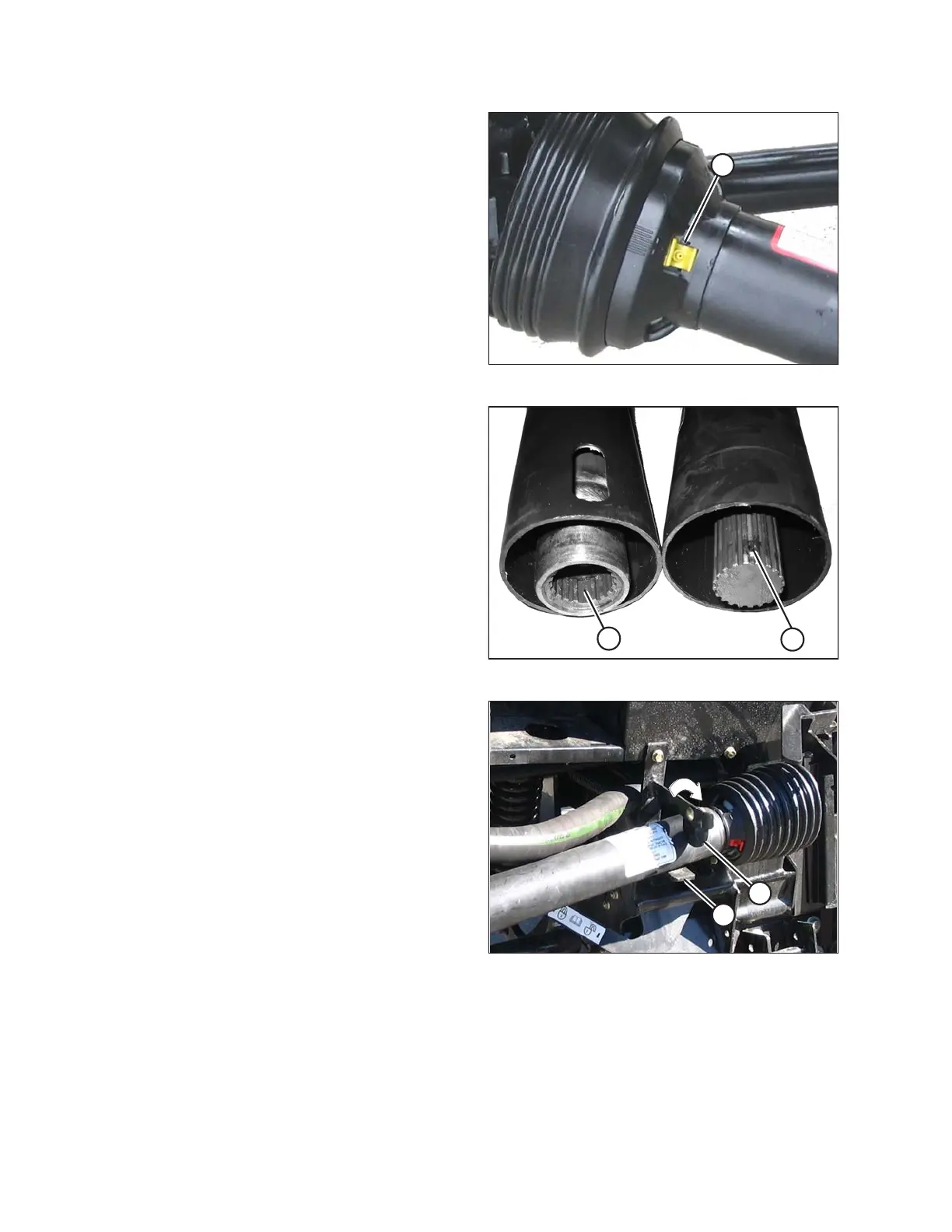

Figure 5.49: Driveline Guard
4. Push the grease zerk (A) back into the guard.
Figure 5.50: Driveline
5. Assemble the driveline.
NOTE:
The splines are keyed to align the universals. Align
weld (A) with the missing spline (B) when assembling.
Figure 5.51: Combine End of Driveline
6. Slide the driveline into the hook (A) so the disc (B)
drops and secures the driveline (or connect to
the combine).
MAINTENANCE AND SERVICING
