214323 358 Revision A

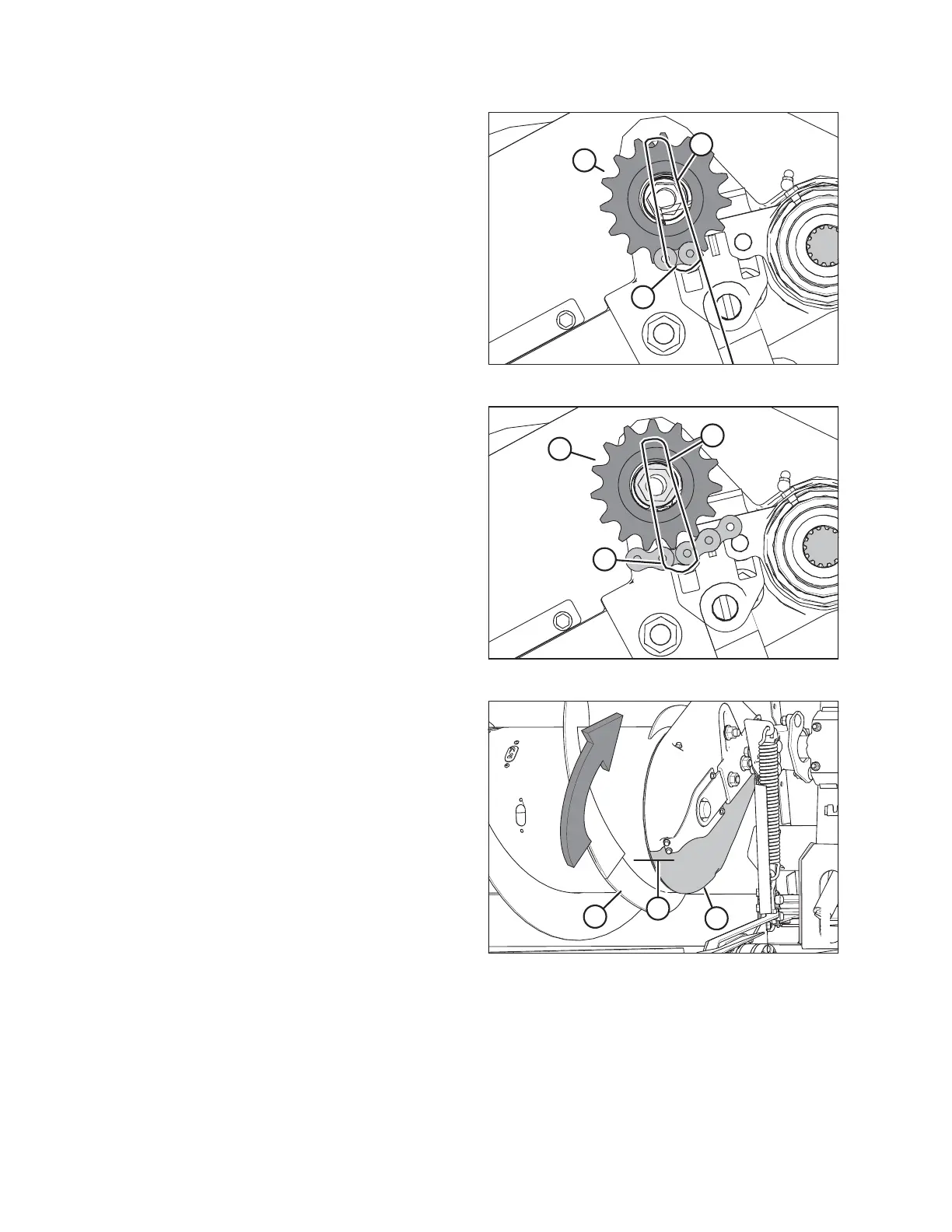

Figure 5.57: Auger Drive Sprocket (Correct)
5. Verify that the auger drive sprocket (A) is engaging the
chain (B) completely through the adjustment slot (C).
Figure 5.58: Auger Drive Sprocket (Incorrect)
NOTE:
If the auger drive sprocket (A) is not properly engaged,
you will need to adjust the chain tension. Refer to 5.7.3
Adjusting Auger Drive Chain Tension, page 359.
Figure 5.59: Auger Drive
6. Rotate the auger (A) by hand, in the reverse direction,
until it cannot turn anymore.
7. Mark a line (B) across the drum and bottom cover (C).
NOTE:
The line gets marked on the bottom cover because the
top cover needs to be removed If chain tension
adjustment is required.
MAINTENANCE AND SERVICING
