214323 419 Revision A

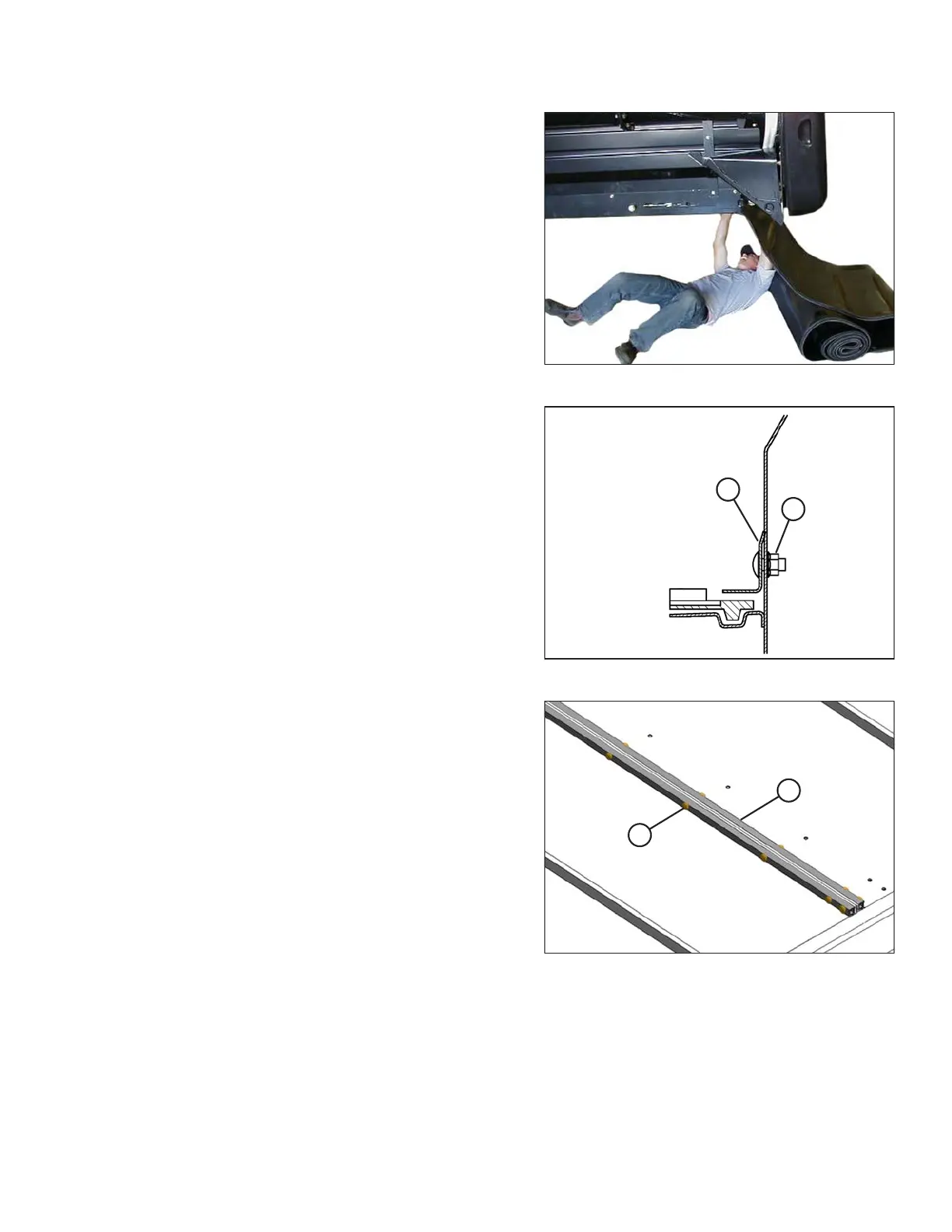

Figure 5.186: Installing Draper
1. Apply talc, baby powder, or talc/graphite lubricant mix to
the draper surface that forms the seal with the cutterbar
and to the underside of the draper guides.
2. Insert the draper into the deck at the outboard end
under the rollers. Pull the draper into the deck while
feeding it at the end.
3. Feed in the draper until it can be wrapped around the
drive roller.
4. Insert the opposite end of the draper into the deck over
the rollers. Pull the draper fully into the deck.
Figure 5.187: Draper Seal
5. Loosen mounting bolts (B) on rear deck deflector (A)
(this may help with draper installation).
Figure 5.188: Draper Connector
6. Attach the ends of the draper with tube connectors (B),
screws (A) (with the heads facing the center opening),
and nuts.
7. Adjust the draper tension. Refer to 5.12.3 Checking and
Adjusting Side Draper Tension, page 420.
MAINTENANCE AND SERVICING
